Design Flexibility: Shapes, Sizes, and Thickness
One of the primary benefits of thin film heaters is their exceptional design flexibility. Unlike traditional rigid heaters, thin film heaters can be customized to fit a wide range of shapes and sizes. Whether you need round, rectangular, or even irregular shapes, thin film heating elements can be designed to precisely meet the requirements of the application.
- Round Heaters: Ideal for applications like camera lens defogging or small heating pads for compact devices. Round heating elements are often used in consumer electronics and medical devices where a uniform heat distribution is necessary.

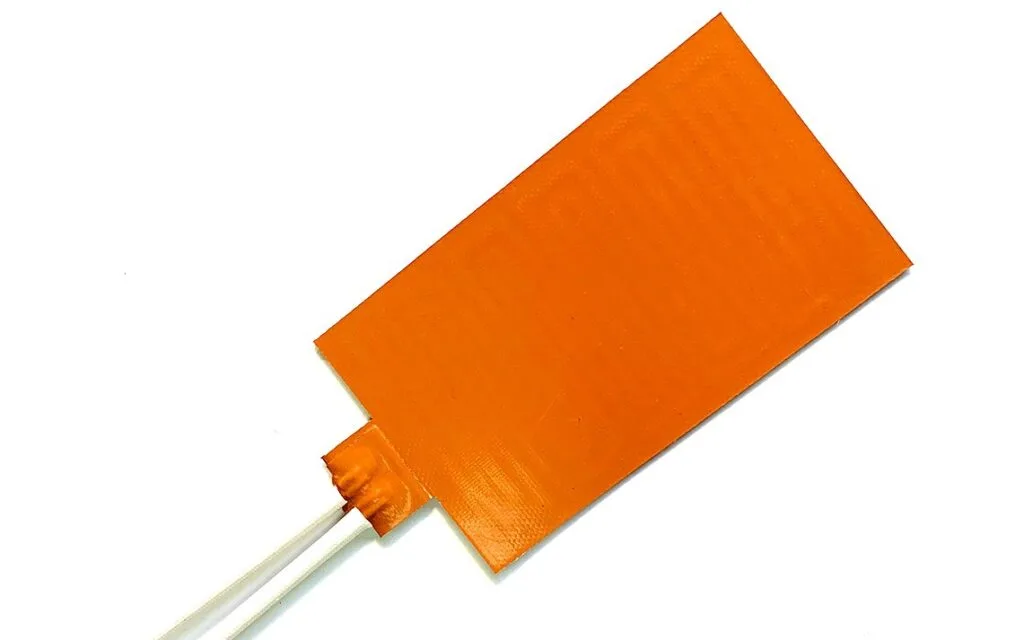

- Rectangular Heaters: Commonly used for battery heating pads, these elements provide consistent heat over a longer, linear surface. They are also suitable for applications such as heated clothing or automotive systems where space is elongated.
- Irregular Shapes: Thin film heaters can be customized to fit irregular geometries, making them perfect for custom industrial devices or aerospace applications where standard shapes won’t fit.
Thickness also plays a critical role in customizing the heater’s performance. Thin film heaters typically range from 0.15mm to 0.4mm in thickness. The thinner the film, the more flexible it becomes, allowing it to conform to curved surfaces or compact spaces. Thicker films, on the other hand, provide higher power density and can be used in higher-power applications, such as in automotive heating.
Temperature and Power Customization
Thin film heaters can be customized for specific temperature and power requirements, making them versatile for a wide range of applications.
- Low-Power Medical Pads: Medical applications, such as IV tube warmers or CPAP machine heaters, require precise and low-temperature heat. Thin film heaters for medical devices often operate on low-voltage (5V to 24V) systems to ensure safety and patient comfort. The watt density is kept low to maintain gentle and consistent heat, preventing overheating or damage to sensitive equipment.
- High-Temperature Automotive Heaters: On the other end of the spectrum, high-temperature applications like automotive heaters or battery warmers demand higher power densities and voltage levels. These heaters often require voltages between 24V to 240V, depending on the application. Watt density must be higher to achieve faster heating times and provide sufficient heat for critical parts, such as windshield defrosters, engine components, or EV batteries.
Adjusting both voltage and watt density ensures that thin film heaters are optimized for their intended purpose. Whether it’s a low-power medical pad or a high-temperature automotive system, these elements can be fine-tuned to match the exact heating demands of any project.
Integration Made Simple: Adhesives and Sensors
Another significant advantage of thin film heating elements is their ease of integration into existing designs. Thanks to modern manufacturing techniques, thin film heaters can be combined with additional features like adhesives, temperature sensors, and safety components to ensure optimal performance and ease of installation.
- Adhesive Backings: Many thin film heaters come with 3M adhesive backing, which allows for quick and easy integration into a wide variety of surfaces and devices. This is particularly helpful for applications where the heater needs to be applied to curved surfaces, such as in camera lenses, battery packs, or beauty devices. The adhesive backing ensures that the heater stays securely in place during operation.
- Embedded Temperature Sensors: To ensure consistent and controlled heating, temperature sensors can be embedded into thin film heaters. These sensors allow for real-time monitoring and feedback, ensuring that the heater maintains the desired temperature range. This is essential in medical devices or battery heating applications where precise temperature control is critical.
- Safety Features: For additional safety, thin film heaters can be equipped with fuses and over-temperature protection. These features automatically shut off the heating element in the event of an overheating issue, preventing damage to the device and enhancing user safety.
These customization options make thin film heaters easier to integrate into products, ensuring a seamless user experience and improved overall performance.
Case Study: Heating Solutions for EV Batteries
One of the most promising areas for thin film heater applications is in the electric vehicle (EV) sector. As EVs become more prevalent, the need for efficient, reliable battery heating solutions grows. Lithium-ion batteries in electric vehicles require optimal temperature conditions to maintain performance and extend lifespan, especially in cold weather.
Thin film heaters can be designed specifically for EV battery packs, offering several benefits:
- Flame-Retardant Materials: The heating elements used in EV batteries are made from flame-retardant materials, ensuring safety in the event of battery malfunctions. Silicone or PI-based heaters can withstand high temperatures while maintaining safety and reliability.
- Thermal Uniformity: To maintain even heat distribution, the heater is often designed with a serpentine or grid-like pattern, ensuring that heat is evenly distributed across the battery pack. This helps avoid hotspots that could cause damage or reduce the battery’s efficiency.
- Flexible Design: Thin film heaters can be customized to fit the shape and size of the battery pack, allowing for better space optimization. The flexibility of these heaters makes them ideal for the compact designs often found in EV battery packs.
With the growing need for energy-efficient, sustainable heating solutions, thin film heaters are playing a critical role in ensuring the optimal performance of EV batteries.
Cost-Effective Customization for Startups
For startups and small businesses, cost-effective and efficient design options are crucial. Thin film heaters provide an ideal solution, offering modular designs that can be adapted to various needs without breaking the bank.
- Modular Designs: Many manufacturers offer modular designs that allow for easy customization. Startups can select the right components (such as PI or PET substrates, heating patterns, and adhesive backings) and scale their designs according to the project’s specific requirements.
- Minimum Order Quantities (MOQs): Thin film heaters are often available with low minimum order quantities (MOQs), making them an ideal choice for small businesses or early-stage projects that need a small number of prototypes or production units without committing to large, expensive production runs.
- Rapid Prototyping: Thin film heaters are also excellent for rapid prototyping. Manufacturers can quickly create prototypes and test different designs, materials, and patterns, allowing startups to iterate and refine their product quickly. This accelerates the product development cycle and helps businesses bring their innovations to market faster.
With the combination of low MOQs, modular designs, and rapid prototyping, thin film heaters offer an affordable and efficient solution for startups and small businesses looking to customize their products.
