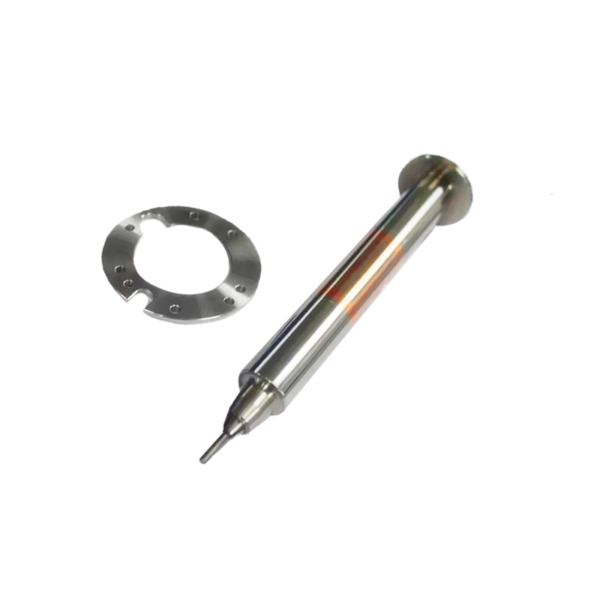

PCB Westwind Spindle Shaft D1686-10

PCB Westwind Spindle Shaft D1686-10

Westwing pcb spindle D1686-10 spare parts could be offered such as the spindle shaft, stator, bearings, collets etc.

Spindles & Shafts

Key Facts

Part type
Spindles & Shafts
Part / model no.
Spindle Shaft D1686-10
Compatible with
Westwind PCB drilling and routing machines
Condition
NEW
Availability
In stock / on request
Lead time
Usually 2–7 days after payment
Ships from
Shenzhen, Guangdong, China — worldwide express
Supplier
Shenzhen Xinxin Precision Equipment Co., Ltd.

Description

The PCB Westwind Spindle Shaft D1686-10 is a replacement part for Westwind PCB drilling and routing machines. It belongs to our Spindles & Shafts range and is supplied new, tested and ready to install, so you can restore the machine to its original accuracy without waiting for an OEM back-order.

What the PCB Westwind Spindle Shaft D1686-10 Does

Spindles, shafts, stators and coils form the drive of the PCB drilling or routing head. Speed stability, run-out and thermal behaviour of these parts set the achievable hole quality and tool life.

Product Details

Westwing pcb spindle D1686-10 spare parts could be offered such as the spindle shaft, stator, bearings, collets etc.

Ordering & Delivery

  • Trade Term: FOB Shenzhen USD by T/T in advance.
  • Discount is allowed against your quantity.
  • OED/OEM is accepted.
  • Delivery will be carried out by Express or your requirement.
  • Lead Time: 2~7 days after payment.

Frequently Asked Questions

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.

When to Replace It

  • Speed drops under load or will not reach rated RPM
  • Run-out out of tolerance
  • Overheating, burnt smell or insulation damage on the stator
  • Damaged shaft taper after a crash

How to Confirm Compatibility

Before ordering, please check or send us:

  • Spindle series and rated speed
  • Shaft / stator part number
  • Collet type used by the shaft
  • Machine brand and head type

Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.

Technical Questions

What information do you need to quote the PCB Westwind Spindle Shaft D1686-10?
Please provide: spindle series and rated speed, shaft / stator part number, collet type used by the shaft, machine brand and head type. Photos of the installed part also help.
Is the PCB Westwind Spindle Shaft D1686-10 new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
When should the PCB Westwind Spindle Shaft D1686-10 be replaced?
Typical signs are: speed drops under load or will not reach rated rpm; run-out out of tolerance; overheating, burnt smell or insulation damage on the stator; damaged shaft taper after a crash.
How fast can the PCB Westwind Spindle Shaft D1686-10 be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).

Technical Parameters

ModelSpindle Shaft D1686-10
ConditionNEW
Applicationfor WW Spindle D1686-10
Lead Time2-3 working days

Compatible PCB Equipment

Parts like the PCB Westwind Spindle Shaft D1686-10 are used on PCB drilling and routing machines. Browse matching machines in Drilling & Via Formation · Profiling & Routing.
