View detailsThe CD1000 collet for excellon QD1000-1010-2000 spindle fits Excellon PCB drilling and routing machines. As a specialist supplier of PCB machine spares, we keep it in our Collets & Wrenches stock and ship it worldwide by express, with technical support to confirm compatibility before you order.
What the CD1000 collet for excellon QD1000-1010-2000 spindle Does
The collet clamps the shank of the drill or router bit inside the spindle. Its gripping force and concentricity directly decide hole position accuracy, bit breakage rate and wall quality.
Product Details

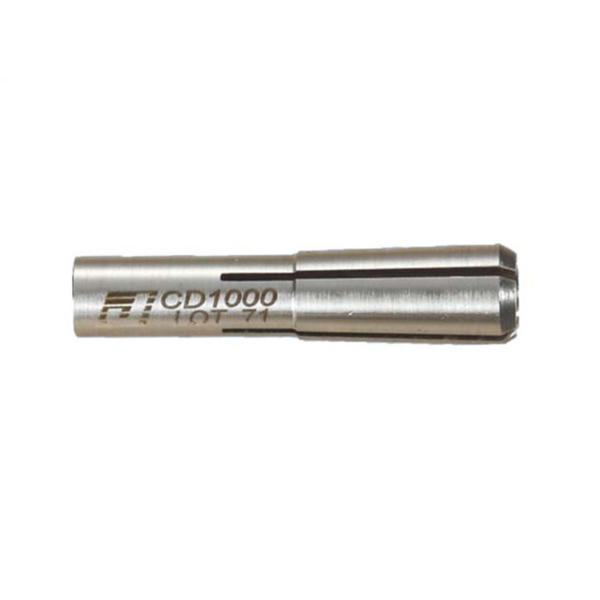

CD1000 collet for excellon QD1000/1010/2000 spindle
Part Name
Drilling Machine Spindle Collet
Application
Excellon Spindle QD1000/1010/2000
Holding Range
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment 100% in advance.
When to Replace It
- Bits slip or pull out during drilling
- Rising run-out or oval holes
- Visible wear, cracks or corrosion on the clamping fingers
- Frequent bit breakage at normal feed rates
How to Confirm Compatibility
Before ordering, please check or send us:
- Spindle model and collet part number
- Shank diameter (e.g. 3.175 mm / 1/8")
- Short or long collet version
- Matching collet wrench for safe changeover
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Which machines is the CD1000 collet for excellon QD1000-1010-2000 spindle compatible with?
It is designed for Excellon PCB drilling and routing machines. Send us the machine model and the original part number (this item: Drilling Machine Spindle Collet) and we will confirm the fit before shipment.
What information do you need to quote the CD1000 collet for excellon QD1000-1010-2000 spindle?
Please provide: spindle model and collet part number, shank diameter (e.g. 3.175 mm / 1/8"), short or long collet version, matching collet wrench for safe changeover. Photos of the installed part also help.
When should the CD1000 collet for excellon QD1000-1010-2000 spindle be replaced?
Typical signs are: bits slip or pull out during drilling; rising run-out or oval holes; visible wear, cracks or corrosion on the clamping fingers; frequent bit breakage at normal feed rates.
Is the CD1000 collet for excellon QD1000-1010-2000 spindle new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
