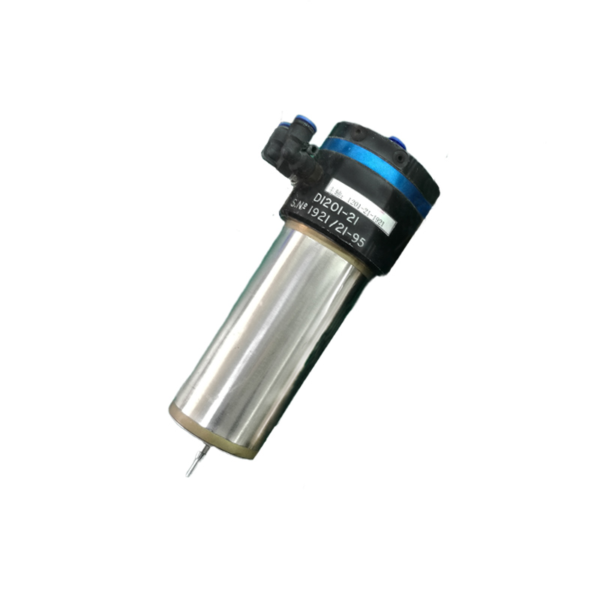

View detailsThe D1201-21 PCB Westwind Spindle Air Bearings fits Westwind PCB drilling and routing machines. As a specialist supplier of PCB machine spares, we keep it in our Bearings stock and ship it worldwide by express, with technical support to confirm compatibility before you order.
What the D1201-21 PCB Westwind Spindle Air Bearings Does
Air-bearing components (front, rear and thrust bearings) float the high-speed spindle shaft on a thin air film. Their clearance defines stiffness, run-out and maximum RPM of the spindle.
Product Details
PCB westwind spindle 125000rpm air bearings D1201-21
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Spindle runs hot or stalls at high RPM
- Increased run-out or noise
- Shaft contact marks after a crash
- Air consumption higher than normal
How to Confirm Compatibility
Before ordering, please check or send us:
- Spindle series and rated RPM
- Bearing position (front / rear / thrust)
- Shaft diameter and clearance class
- Clean, dry compressed-air supply after installation
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
When should the D1201-21 PCB Westwind Spindle Air Bearings be replaced?
Typical signs are: spindle runs hot or stalls at high rpm; increased run-out or noise; shaft contact marks after a crash; air consumption higher than normal.
Which machines is the D1201-21 PCB Westwind Spindle Air Bearings compatible with?
It is designed for Westwind PCB drilling and routing machines. Send us the machine model and the original part number (this item: PCB Spindle D1201-21) and we will confirm the fit before shipment.
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
Is the D1201-21 PCB Westwind Spindle Air Bearings new or refurbished?
The item is supplied in used but good working condition condition. Every part is inspected before it is packed.
Sources & References
- IPC-A-600: Acceptability of Printed Boards
- IPC-6012: Qualification and Performance Specification for Rigid Printed Boards
- Photo Chemical Machining Institute — process capability guidelines
- NIST Engineering Statistics Handbook — process tolerance and capability
Standards are referenced for context. Always confirm parameters against the current published edition and your own process validation.
