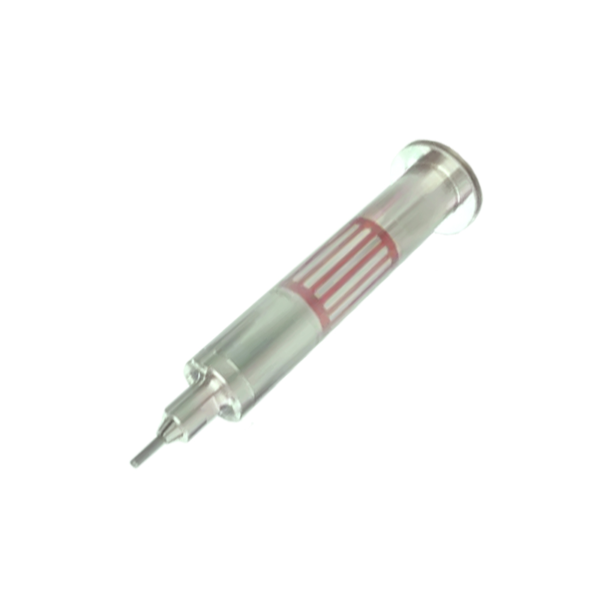

View detailsThe PCB ABL Air Bearing Spindle Shaft H920B is a replacement part for PCB drilling and routing machines. It belongs to our Bearings range and is supplied new, tested and ready to install, so you can restore the machine to its original accuracy without waiting for an OEM back-order.
What the PCB ABL Air Bearing Spindle Shaft H920B Does
Air-bearing components (front, rear and thrust bearings) float the high-speed spindle shaft on a thin air film. Their clearance defines stiffness, run-out and maximum RPM of the spindle.
Product Details
Air bearing spindle parts H920B could be provided in WET with high quality and cheaper price such as the spindle shaft, stator, bearings, collets etc.
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Spindle runs hot or stalls at high RPM
- Increased run-out or noise
- Shaft contact marks after a crash
- Air consumption higher than normal
How to Confirm Compatibility
Before ordering, please check or send us:
- Spindle series and rated RPM
- Bearing position (front / rear / thrust)
- Shaft diameter and clearance class
- Clean, dry compressed-air supply after installation
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
When should the PCB ABL Air Bearing Spindle Shaft H920B be replaced?
Typical signs are: spindle runs hot or stalls at high rpm; increased run-out or noise; shaft contact marks after a crash; air consumption higher than normal.
Is the PCB ABL Air Bearing Spindle Shaft H920B new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
Which machines is the PCB ABL Air Bearing Spindle Shaft H920B compatible with?
It is designed for PCB drilling and routing machines. Send us the machine model and the original part number (this item: Spindle Shaft H920B) and we will confirm the fit before shipment.
