View detailsThe PCB Spindle Hitachi Collet 7ZTU fits Hitachi PCB drilling and routing machines. As a specialist supplier of PCB machine spares, we keep it in our Collets & Wrenches stock and ship it worldwide by express, with technical support to confirm compatibility before you order.
What the PCB Spindle Hitachi Collet 7ZTU Does
The collet clamps the shank of the drill or router bit inside the spindle. Its gripping force and concentricity directly decide hole position accuracy, bit breakage rate and wall quality.
Product Details

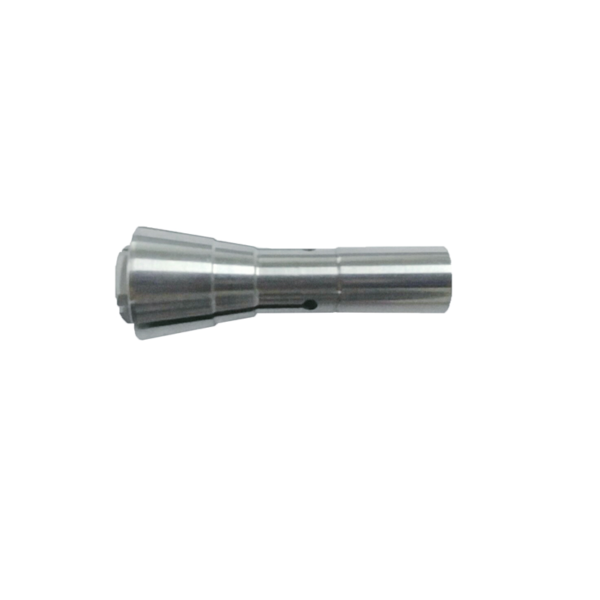

PCB Hitachi spindle parts Collet 7ZTU
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Bits slip or pull out during drilling
- Rising run-out or oval holes
- Visible wear, cracks or corrosion on the clamping fingers
- Frequent bit breakage at normal feed rates
How to Confirm Compatibility
Before ordering, please check or send us:
- Spindle model and collet part number
- Shank diameter (e.g. 3.175 mm / 1/8")
- Short or long collet version
- Matching collet wrench for safe changeover
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
When should the PCB Spindle Hitachi Collet 7ZTU be replaced?
Typical signs are: bits slip or pull out during drilling; rising run-out or oval holes; visible wear, cracks or corrosion on the clamping fingers; frequent bit breakage at normal feed rates.
Which machines is the PCB Spindle Hitachi Collet 7ZTU compatible with?
It is designed for Hitachi PCB drilling and routing machines. Send us the machine model and the original part number (this item: Collet 7ZTU) and we will confirm the fit before shipment.
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
Is the PCB Spindle Hitachi Collet 7ZTU new or refurbished?
The item is supplied in used condition. Every part is inspected before it is packed.
