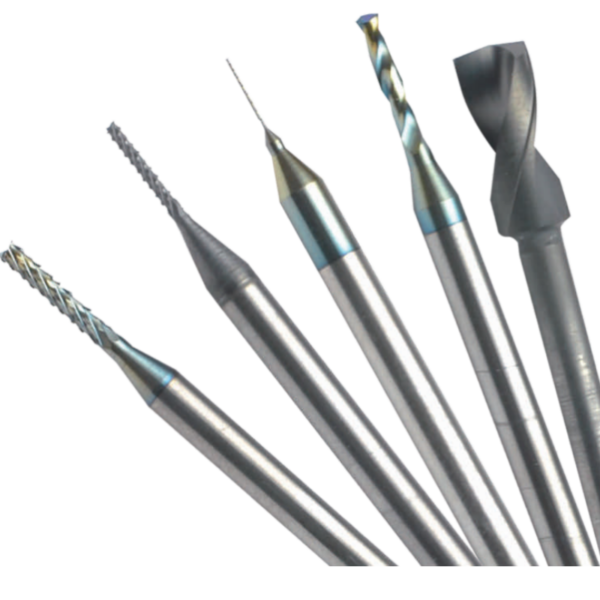

View detailsThe PVD Coated Drill Bit fits PCB drilling machines. As a specialist supplier of PCB machine spares, we keep it in our Drill & Router Bits stock and ship it worldwide by express, with technical support to confirm compatibility before you order.
What the PVD Coated Drill Bit Does
Drill and router bits are the cutting tools of the PCB line. Geometry, coating and shank tolerance decide hole wall quality, burr level and how many hits each tool can make.
Product Details
High hardness and high temperature lubrication,increase tool life,improve processing quality
PVD coating provides high hardness, superior wear resistance and outstanding high temperature lubrication.It is very suitable for
the routing processes of common PCB boards, middle and high grade hard boards, which can effectively increase tool life and
improve processing quality.
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Rough hole walls or nail-heading
- Burrs on the exit side
- Rising breakage rate
- Hit count well below the usual tool life
How to Confirm Compatibility
Before ordering, please check or send us:
- Diameter, flute length and shank size
- Material stack (FR-4, high-Tg, aluminium, etc.)
- Coating (e.g. TAC / DLC) where required
- Re-pointing and tool-life settings
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
How fast can the PVD Coated Drill Bit be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
When should the PVD Coated Drill Bit be replaced?
Typical signs are: rough hole walls or nail-heading; burrs on the exit side; rising breakage rate; hit count well below the usual tool life.
What information do you need to quote the PVD Coated Drill Bit?
Please provide: diameter, flute length and shank size, material stack (fr-4, high-tg, aluminium, etc.), coating (e.g. tac / dlc) where required, re-pointing and tool-life settings. Photos of the installed part also help.
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
