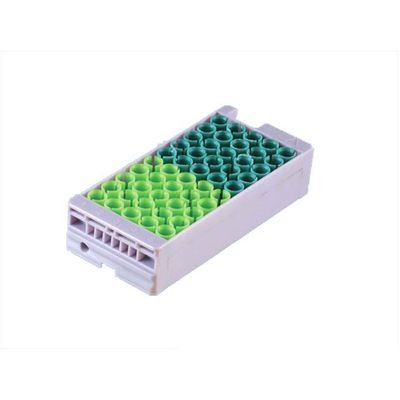

View detailsLooking for a reliable Tool cassette for PCB Tailiang Drilling Machine? We stock this part for PCB drilling machines as part of our Tool Magazines & Grippers range. Every unit is checked before dispatch and shipped from Shenzhen, so downtime on your drilling or routing line stays short.
What the Tool cassette for PCB Tailiang Drilling Machine Does
Tool magazines, pods, holders, clips and grippers store and transfer drill and router bits during automatic tool change. Precise pockets and grip force prevent dropped tools and changer alarms.
Product Details
pcb tool cassette for all kinds of pcb drilling and routing machine such as Tailiang, Mania,Posalux,Hitachi, Schmoll, Anderson etc.
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Tools dropped or mis-picked during change
- Worn or cracked pockets and clips
- Tool change alarms
- Loose tool rings in the pod
How to Confirm Compatibility
Before ordering, please check or send us:
- Machine brand and changer type
- Pod / pocket diameter (e.g. 20 mm)
- Number of holes or positions
- Tool ring size used
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Is the Tool cassette for PCB Tailiang Drilling Machine new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
What information do you need to quote the Tool cassette for PCB Tailiang Drilling Machine?
Please provide: machine brand and changer type, pod / pocket diameter (e.g. 20 mm), number of holes or positions, tool ring size used. Photos of the installed part also help.
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
How fast can the Tool cassette for PCB Tailiang Drilling Machine be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
