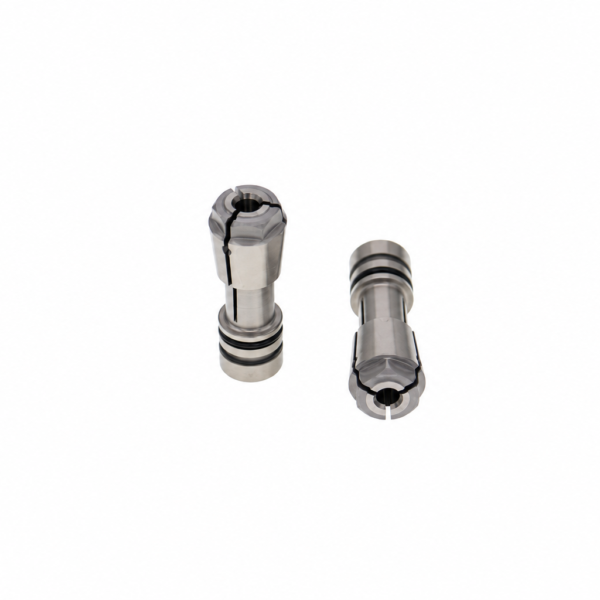

230505 – CR1180 Collet for precise W-69 Spindle

230505 – CR1180 Collet for precise W-69 Spindle

Collets & Wrenche for Precise PCB drilling and routing machines · Part no. Drilling Machine Spindle Collet. New, in stock.

Collets & Wrenches

Key Facts

Part type
Collets & Wrenches
Part / model no.
Drilling Machine Spindle Collet
Compatible with
Precise PCB drilling and routing machines
Condition
New
Availability
In stock / on request
Lead time
Usually 2–7 days after payment
Ships from
Shenzhen, Guangdong, China — worldwide express
Supplier
Shenzhen Xinxin Precision Equipment Co., Ltd.

Description

The 230505 – CR1180 Collet for precise W-69 Spindle fits Precise PCB drilling and routing machines. As a specialist supplier of PCB machine spares, we keep it in our Collets & Wrenches stock and ship it worldwide by express, with technical support to confirm compatibility before you order.

What the 230505 – CR1180 Collet for precise W-69 Spindle Does

The collet clamps the shank of the drill or router bit inside the spindle. Its gripping force and concentricity directly decide hole position accuracy, bit breakage rate and wall quality.

Product Details

Part Name

Drilling Machine Spindle Collet

Application

precise W-69 Spindle

Holding Range

3.175mm

Dynamic Run-out

10um

Static Run-out

2um

Ordering & Delivery

  • Trade Term: FOB Shenzhen USD by T/T in advance.
  • Discount is allowed against your quantity.
  • OED/OEM is accepted.
  • Delivery will be carried out by Express or your requirement.
  • Lead Time: 2~7 days after payment.

Frequently Asked Questions

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment 100% in advance.

When to Replace It

  • Bits slip or pull out during drilling
  • Rising run-out or oval holes
  • Visible wear, cracks or corrosion on the clamping fingers
  • Frequent bit breakage at normal feed rates

How to Confirm Compatibility

Before ordering, please check or send us:

  • Spindle model and collet part number
  • Shank diameter (e.g. 3.175 mm / 1/8")
  • Short or long collet version
  • Matching collet wrench for safe changeover

Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.

Technical Questions

How fast can the 230505 – CR1180 Collet for precise W-69 Spindle be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
Which machines is the 230505 – CR1180 Collet for precise W-69 Spindle compatible with?
It is designed for Precise PCB drilling and routing machines. Send us the machine model and the original part number (this item: Drilling Machine Spindle Collet) and we will confirm the fit before shipment.
What information do you need to quote the 230505 – CR1180 Collet for precise W-69 Spindle?
Please provide: spindle model and collet part number, shank diameter (e.g. 3.175 mm / 1/8"), short or long collet version, matching collet wrench for safe changeover. Photos of the installed part also help.

Technical Parameters

Part NameDrilling Machine Spindle Collet
Applicationprecise W-69 Spindle
Holding Range3.175mm
Dynamic Run-out10um
Static Run-out2um
Customizedyes

Compatible PCB Equipment

Parts like the 230505 – CR1180 Collet for precise W-69 Spindle are used on PCB drilling and routing machines. Browse matching machines in Drilling & Via Formation · Profiling & Routing.
