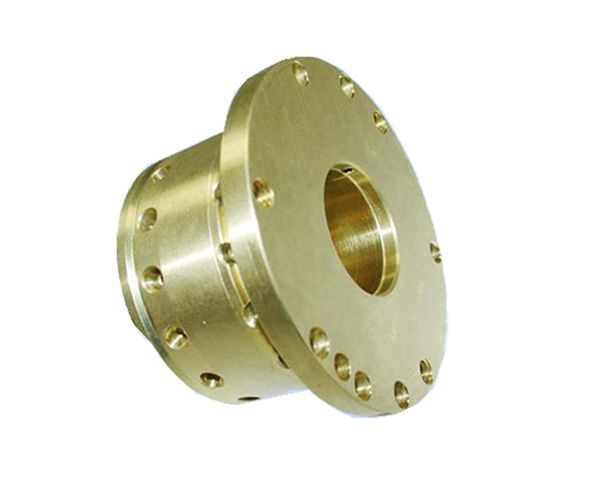

View detailsThe ASC200 Rear bearing for Precise Spindle fits Precise PCB drilling and routing machines. As a specialist supplier of PCB machine spares, we keep it in our Bearings stock and ship it worldwide by express, with technical support to confirm compatibility before you order.
What the ASC200 Rear bearing for Precise Spindle Does
Air-bearing components (front, rear and thrust bearings) float the high-speed spindle shaft on a thin air film. Their clearance defines stiffness, run-out and maximum RPM of the spindle.
Product Details
bearing for Precise spindle, use in PCB CNC Drilling machine
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
When to Replace It
- Spindle runs hot or stalls at high RPM
- Increased run-out or noise
- Shaft contact marks after a crash
- Air consumption higher than normal
How to Confirm Compatibility
Before ordering, please check or send us:
- Spindle series and rated RPM
- Bearing position (front / rear / thrust)
- Shaft diameter and clearance class
- Clean, dry compressed-air supply after installation
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Which machines is the ASC200 Rear bearing for Precise Spindle compatible with?
It is designed for Precise PCB drilling and routing machines. Send us the machine model and the original part number (this item: ASC200) and we will confirm the fit before shipment.
When should the ASC200 Rear bearing for Precise Spindle be replaced?
Typical signs are: spindle runs hot or stalls at high rpm; increased run-out or noise; shaft contact marks after a crash; air consumption higher than normal.
What information do you need to quote the ASC200 Rear bearing for Precise Spindle?
Please provide: spindle series and rated rpm, bearing position (front / rear / thrust), shaft diameter and clearance class, clean, dry compressed-air supply after installation. Photos of the installed part also help.
Is the ASC200 Rear bearing for Precise Spindle new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
