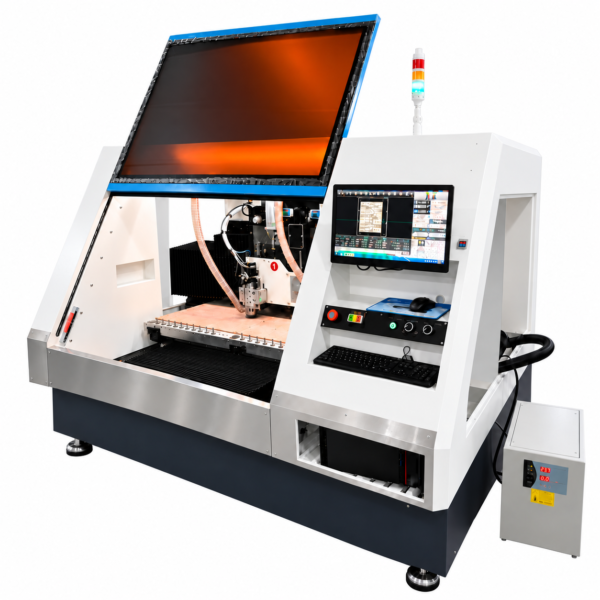

View detailsWET-AS-2LH 2 Spindles PCB Drilling and Routing Machine
Key Design and Performance Highlights:
Four-Spindle Productivity — 2 high-frequency ball-bearing spindles (60,000 rpm standard; 125,000 rpm optional.
X/Y/Z Linear Motor Drive — Higher acceleration, smoother motion and higher long-term accuracy .
Granite Machine Body — 000-grade precision granite, providing superior vibration damping and long-term thermal stability.
20 Tools per Spindle — 2 × 10-tool automatic tool magazines (total 20 tools), ATC in under 10 seconds
Windows 10 Control System—Closed-loop position feedback running WET V10.0 software on Windows 10 IoT Enterprise LTSC
Fully compatible — Excellon, Siebold & Meyer drill files, Gerber and standard NC programs.
Multi-Material Capability — handles FR-4, CEM-1/3, aluminum MCPCB, copper-based PCB and other common PCB substrates
Multi-Panel Stack Drilling — up to 3 panels of standard FR-4 simultaneously, depending on panel thickness.
General Parameters
Motion & Mechanical System
Spindle & Tooling
Automation, Control & Software
Utilities & Environment
Frequently Asked Questions
What does the WET-AS-2LH 2 Spindles PCB Drilling and Routing Machine do in the production line?
The WET-AS-2LH 2 Spindles PCB Drilling and Routing Machine performs a dedicated step in PCB fabrication. Correct placement relative to the upstream and downstream stages is what protects overall yield, cycle time, and cost per panel, so it is normally specified together with the cells immediately before and after it.
Can the WET-AS-2LH 2 Spindles PCB Drilling and Routing Machine be customised for our process?
Yes. Conveyor width, tooling, control options, and the surrounding handling can be adapted to your panel size, throughput target, and facility constraints. Share your specification and we will propose a configuration.
What are the utility requirements for the WET-AS-2LH 2 Spindles PCB Drilling and Routing Machine?
Electrical supply is specified at 2.5 kW. Compressed air, water, and exhaust connections are detailed in the installation drawing supplied before delivery.
What throughput can the WET-AS-2LH 2 Spindles PCB Drilling and Routing Machine achieve?
Typical throughput is 20 tools per spindle. Actual figures depend on material thickness, feature density, and the quality target, so treat the rated value as a planning baseline rather than a guarantee.
Sources & References
- IPC-A-600: Acceptability of Printed Boards
- IPC-6012: Qualification and Performance Specification for Rigid Printed Boards
- Photo Chemical Machining Institute — process capability guidelines
- NIST Engineering Statistics Handbook — process tolerance and capability
Standards are referenced for context. Always confirm parameters against the current published edition and your own process validation.
