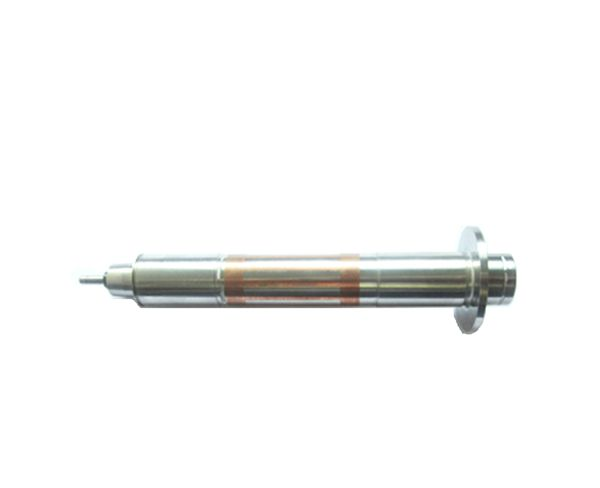

View detailsThe ASC200 Shaft for Precise spindle fits Precise PCB drilling and routing machines. As a specialist supplier of PCB machine spares, we keep it in our Spindles & Shafts stock and ship it worldwide by express, with technical support to confirm compatibility before you order.
What the ASC200 Shaft for Precise spindle Does
Spindles, shafts, stators and coils form the drive of the PCB drilling or routing head. Speed stability, run-out and thermal behaviour of these parts set the achievable hole quality and tool life.
Product Details
For Precise spindle , which used for PCB routing machine
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Speed drops under load or will not reach rated RPM
- Run-out out of tolerance
- Overheating, burnt smell or insulation damage on the stator
- Damaged shaft taper after a crash
How to Confirm Compatibility
Before ordering, please check or send us:
- Spindle series and rated speed
- Shaft / stator part number
- Collet type used by the shaft
- Machine brand and head type
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
How fast can the ASC200 Shaft for Precise spindle be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
Which machines is the ASC200 Shaft for Precise spindle compatible with?
It is designed for Precise PCB drilling and routing machines. Send us the machine model and the original part number (this item: ASC200) and we will confirm the fit before shipment.
What information do you need to quote the ASC200 Shaft for Precise spindle?
Please provide: spindle series and rated speed, shaft / stator part number, collet type used by the shaft, machine brand and head type. Photos of the installed part also help.
