CNC Routing Machine (Single Spindle)
Precision profiling & routing equipment specified to your panel size, throughput, and automation level.
View detailsThe Depth Control one Spindle PCB Routing Machine DR11 fits PCB routing machines. As a specialist supplier of PCB machine spares, we keep it in our Spindles & Shafts stock and ship it worldwide by express, with technical support to confirm compatibility before you order.
What the Depth Control one Spindle PCB Routing Machine DR11 Does
Spindles, shafts, stators and coils form the drive of the PCB drilling or routing head. Speed stability, run-out and thermal behaviour of these parts set the achievable hole quality and tool life.
Product Details

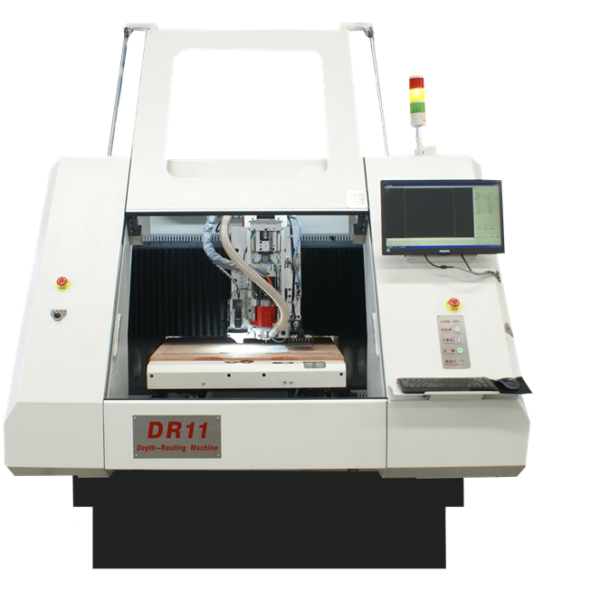

Depth Control 1 Spindle PCB Routing Machine with the new design of auto pinning function.
X Y Z axis all use high precision Renishaw linear scale
Tool broken detection
Depth control precision ±0.05mm
Z axis independent control
CCD cameras
Spindle reverse milling function
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Speed drops under load or will not reach rated RPM
- Run-out out of tolerance
- Overheating, burnt smell or insulation damage on the stator
- Damaged shaft taper after a crash
How to Confirm Compatibility
Before ordering, please check or send us:
- Spindle series and rated speed
- Shaft / stator part number
- Collet type used by the shaft
- Machine brand and head type
Looking for complete machines? See our Profiling & Routing and Drilling & Via Formation.
Technical Questions
When should the Depth Control one Spindle PCB Routing Machine DR11 be replaced?
Typical signs are: speed drops under load or will not reach rated rpm; run-out out of tolerance; overheating, burnt smell or insulation damage on the stator; damaged shaft taper after a crash.
What information do you need to quote the Depth Control one Spindle PCB Routing Machine DR11?
Please provide: spindle series and rated speed, shaft / stator part number, collet type used by the shaft, machine brand and head type. Photos of the installed part also help.
Is the Depth Control one Spindle PCB Routing Machine DR11 new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
Which machines is the Depth Control one Spindle PCB Routing Machine DR11 compatible with?
It is designed for PCB routing machines. Send us the machine model and the original part number (this item: Depth Control PCB CNC Router_DR11) and we will confirm the fit before shipment.
