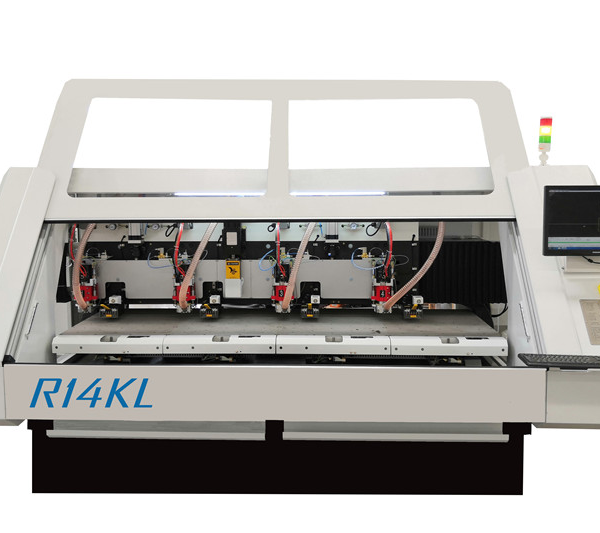

Depth Control 4 Spindles PCB Routing Machine DR14KL

Depth Control 4 Spindles PCB Routing Machine DR14KL

Depth Control 4 Spindles PCB Routing Machine DR14KL

Depth Control 4 Spindles PCB Routing Machine with the new design of auto pinning function.

Profiling & Routing
Get a Quote WhatsApp

Description

Depth Control 4 Spindles PCB Routing Machine with the new design of auto pinning function.

WET could provide the pcb routing machine such as 4 spindles pcb routing machine. Our machines have obtained the national

patent with the new design of auto pinning function. This new achievement will improve the processing efficiency while routing.

Also, the machine includes the blind routing function for the multilayers boards. And the Tool Broken Detector, Tool length Detector,

aotu tool change, machine tool cleaning button and so on are assembled.

X Y Z axis all use high precision Renishaw linear scale

Broken tool detection

Depth control precision ±0.05mm

Z axis independent control

Ordering & Delivery

  • Trade Term: FOB Shenzhen USD by T/T in advance.
  • Discount is allowed against your quantity.
  • OED/OEM is accepted.
  • Delivery will be carried out by Express or your requirement.
  • Lead Time: 2~7 days after payment.

Frequently Asked Questions

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.

Frequently Asked Questions

How is the Depth Control 4 Spindles PCB Routing Machine DR14KL controlled and operated?
Control is handled by ±0.05mm. Operators set recipes through the interface, and process values are logged for traceability and repeatability.
Can the Depth Control 4 Spindles PCB Routing Machine DR14KL be customised for our process?
Yes. Conveyor width, tooling, control options, and the surrounding handling can be adapted to your panel size, throughput target, and facility constraints. Share your specification and we will propose a configuration.
What materials is the Depth Control 4 Spindles PCB Routing Machine DR14KL suitable for?
Material compatibility is confirmed against your substrate during process qualification. A small sample run is the fastest way to validate fit before committing to production.
What are the utility requirements for the Depth Control 4 Spindles PCB Routing Machine DR14KL?
Electrical supply is specified at 3P/380V/50Hz (±5%); 3KW. Compressed air, water, and exhaust connections are detailed in the installation drawing supplied before delivery.

Sources & References

Standards are referenced for context. Always confirm parameters against the current published edition and your own process validation.

D
Reviewed by
Chief Engineer, Wet Etching · WET Etched
Ph.D., Metallurgical & Chemical Engineering, Xiamen University

Technical Parameters

No. of Spindle4
Spindle Speed60k rpm / min
Processing area of each axis580mm×730mm
XYZ axial movement stroke600mm×825mm×55mm
Number of tools per axis66 pcs
Routing diameterφ0.6-φ3.175mm :
ModelPCB CNC Router_DR14KL
No. of Z axis4
Drilling diameterφ0.5-φ6.35mm
Milling diameterφ0.6-φ3.175mm
XY Axial max. movement speed28m/min
Ｚ Axial max. movement speed25m/min
System resolution ratio0.001mm
Positioning Accuracy±0.01mm
Repeatability Accuracy±0.005mm
Routing precision±0.05mm
Depth control precision±0.05mm
Power requirements3P/380V/50Hz (±5%); 3KW
Compressed air requirement300L/min
Cooling water requirement18℃-25℃
Environmental temperature20℃-25℃
Ambient humidity50%-75%
Noise≤75dBA
Machine Size3.24m×1.93m×1.62m（L×W×H）
Accessories nameSpecifications / Quantity / Brand
X axis- ball screw25×10-1180 / 1 / HIWIN(Taiwan, China)
Y axis- ball screw25×10-1330 / 1 / HIWIN(Taiwan, China)
Z axis- ball screw25×10-320 / 1 / HIWIN(Taiwan, China)
X axis-guide rail and slide block30×2680 / 2 / HIWIN(Taiwan, China)
Y axis-guide rail and slide block30×1350 / 4 / HIWIN(Taiwan, China)
Z axis-guide rail and slide block20×280 / 20×160 / 4/2 / HIWIN(Taiwan, China)
X/Y/Z axis-Servo Motor and Driver2KW / 3 / Delta(Taiwan, China)
X/Y/Z axis- BearingBS2047TN1/P4GB / 6 / NSK(Japan)
SpindleKL-60C—2E / 4 / KLKJ（China）
