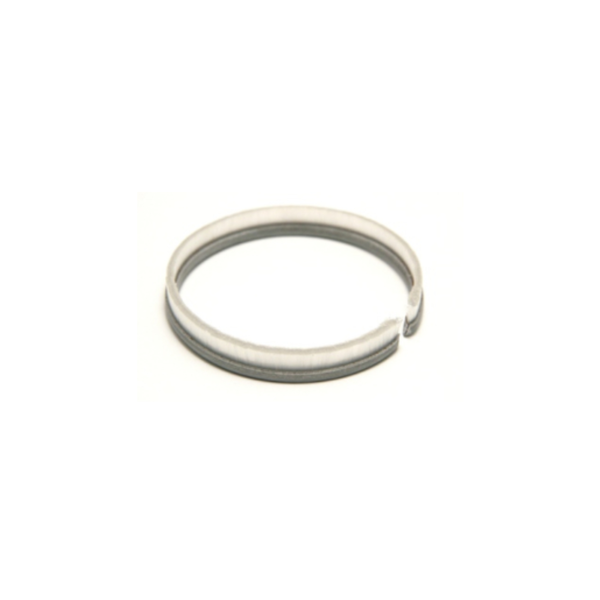

View detailsLooking for a reliable PCB HItachi Mark10 CNC Drilling Machine Brush? We stock this part for Hitachi PCB drilling machines as part of our Pressure Feet & Brushes range. Every unit is checked before dispatch and shipped from Shenzhen, so downtime on your drilling or routing line stays short.
What the PCB HItachi Mark10 CNC Drilling Machine Brush Does
Pressure feet, bushes and brushes hold the panel flat around the tool and extract chips and dust. A worn foot or brush causes burrs, entry-side damage and poor dust extraction.
Product Details
PCB Hiacthi CNC Driller machine parts could be provided such as the spindle and spindle parts, pressure foot cup and pressure foot assembies etc.
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Burrs or lifted copper on the entry side
- Dust left on the panel after drilling
- Bristles worn, uneven or melted
- Cracked or deformed foot body
How to Confirm Compatibility
Before ordering, please check or send us:
- Machine brand and spindle model
- Outer diameter and bush hole size
- Brush length and bristle type
- Vacuum fitting compatibility
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
When should the PCB HItachi Mark10 CNC Drilling Machine Brush be replaced?
Typical signs are: burrs or lifted copper on the entry side; dust left on the panel after drilling; bristles worn, uneven or melted; cracked or deformed foot body.
What information do you need to quote the PCB HItachi Mark10 CNC Drilling Machine Brush?
Please provide: machine brand and spindle model, outer diameter and bush hole size, brush length and bristle type, vacuum fitting compatibility. Photos of the installed part also help.
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
Which machines is the PCB HItachi Mark10 CNC Drilling Machine Brush compatible with?
It is designed for Hitachi PCB drilling machines. Send us the machine model and the original part number (this item: Hitachi Mark10 Brush) and we will confirm the fit before shipment.
