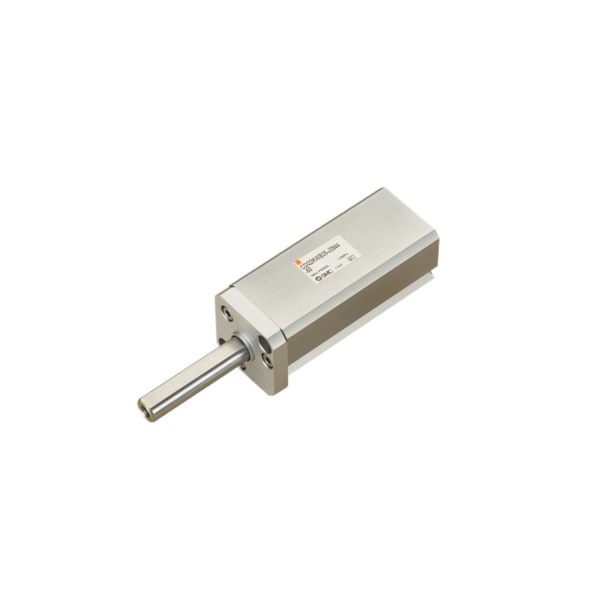

View detailsLooking for a reliable PCB Pneumatic Air Cylinder CDQ2KWB25-J2844-50? We stock this part for PCB drilling and routing machines as part of our Pneumatic Cylinders range. Every unit is checked before dispatch and shipped from Shenzhen, so downtime on your drilling or routing line stays short.
What the PCB Pneumatic Air Cylinder CDQ2KWB25-J2844-50 Does
Pneumatic cylinders and joints drive the pressure foot, tool clamp and changer movements. Correct bore, stroke and cushioning keep these motions fast and repeatable.
Product Details
PCB spindles, cylinders, collets, too change and tool magazine etc. could be provided in WET with high quality and manufacturing price.
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment
When to Replace It
- Slow or jerky movement
- Air leaking at the rod seal
- Pressure foot not lifting or clamping evenly
- Position sensor alarms
How to Confirm Compatibility
Before ordering, please check or send us:
- Full cylinder code (bore × stroke, suffix)
- Mounting style and rod end
- Sensor / switch type
- Machine brand and position on the head
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
What information do you need to quote the PCB Pneumatic Air Cylinder CDQ2KWB25-J2844-50?
Please provide: full cylinder code (bore × stroke, suffix), mounting style and rod end, sensor / switch type, machine brand and position on the head. Photos of the installed part also help.
Which machines is the PCB Pneumatic Air Cylinder CDQ2KWB25-J2844-50 compatible with?
It is designed for PCB drilling and routing machines. Send us the machine model and the original part number (this item: WETQG-003 Cylinder CDQ2KWB25-J2844-50) and we will confirm the fit before shipment.
When should the PCB Pneumatic Air Cylinder CDQ2KWB25-J2844-50 be replaced?
Typical signs are: slow or jerky movement; air leaking at the rod seal; pressure foot not lifting or clamping evenly; position sensor alarms.
How fast can the PCB Pneumatic Air Cylinder CDQ2KWB25-J2844-50 be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
