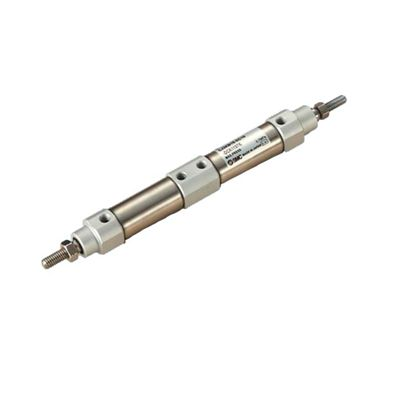

View detailsLooking for a reliable T1197 Air Cylinder for PCB Hitachi machine? We stock this part for Hitachi PCB drilling and routing machines as part of our Pneumatic Cylinders range. Every unit is checked before dispatch and shipped from Shenzhen, so downtime on your drilling or routing line stays short.
What the T1197 Air Cylinder for PCB Hitachi machine Does
Pneumatic cylinders and joints drive the pressure foot, tool clamp and changer movements. Correct bore, stroke and cushioning keep these motions fast and repeatable.
Product Details
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment 100% in advance.
When to Replace It
- Slow or jerky movement
- Air leaking at the rod seal
- Pressure foot not lifting or clamping evenly
- Position sensor alarms
How to Confirm Compatibility
Before ordering, please check or send us:
- Full cylinder code (bore × stroke, suffix)
- Mounting style and rod end
- Sensor / switch type
- Machine brand and position on the head
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
What information do you need to quote the T1197 Air Cylinder for PCB Hitachi machine?
Please provide: full cylinder code (bore × stroke, suffix), mounting style and rod end, sensor / switch type, machine brand and position on the head. Photos of the installed part also help.
Is the T1197 Air Cylinder for PCB Hitachi machine new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
When should the T1197 Air Cylinder for PCB Hitachi machine be replaced?
Typical signs are: slow or jerky movement; air leaking at the rod seal; pressure foot not lifting or clamping evenly; position sensor alarms.
How fast can the T1197 Air Cylinder for PCB Hitachi machine be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
