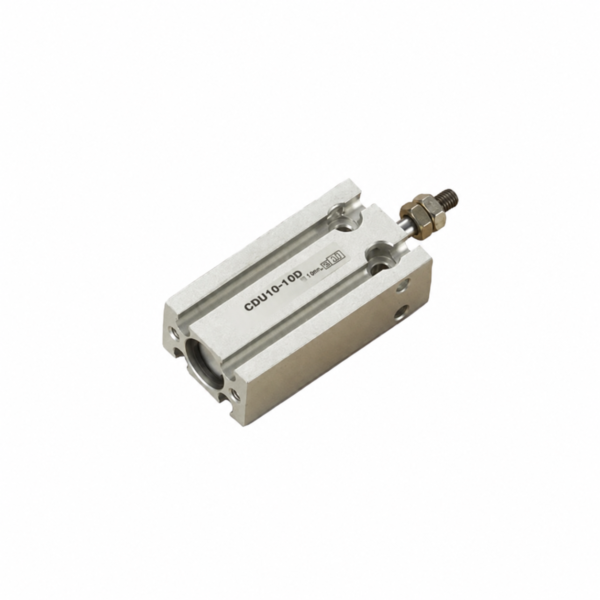

View detailsThe Air cylinder CDU10-10D for PCB Tongtai machine is a replacement part for Tongtai PCB drilling and routing machines. It belongs to our Pneumatic Cylinders range and is supplied new, tested and ready to install, so you can restore the machine to its original accuracy without waiting for an OEM back-order.
What the Air cylinder CDU10-10D for PCB Tongtai machine Does
Pneumatic cylinders and joints drive the pressure foot, tool clamp and changer movements. Correct bore, stroke and cushioning keep these motions fast and repeatable.
Product Details
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment 100% in advance.
When to Replace It
- Slow or jerky movement
- Air leaking at the rod seal
- Pressure foot not lifting or clamping evenly
- Position sensor alarms
How to Confirm Compatibility
Before ordering, please check or send us:
- Full cylinder code (bore × stroke, suffix)
- Mounting style and rod end
- Sensor / switch type
- Machine brand and position on the head
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Is the Air cylinder CDU10-10D for PCB Tongtai machine new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
Which machines is the Air cylinder CDU10-10D for PCB Tongtai machine compatible with?
It is designed for Tongtai PCB drilling and routing machines. Send us the machine model and the original part number (this item: CDU10-10D) and we will confirm the fit before shipment.
When should the Air cylinder CDU10-10D for PCB Tongtai machine be replaced?
Typical signs are: slow or jerky movement; air leaking at the rod seal; pressure foot not lifting or clamping evenly; position sensor alarms.
What information do you need to quote the Air cylinder CDU10-10D for PCB Tongtai machine?
Please provide: full cylinder code (bore × stroke, suffix), mounting style and rod end, sensor / switch type, machine brand and position on the head. Photos of the installed part also help.
