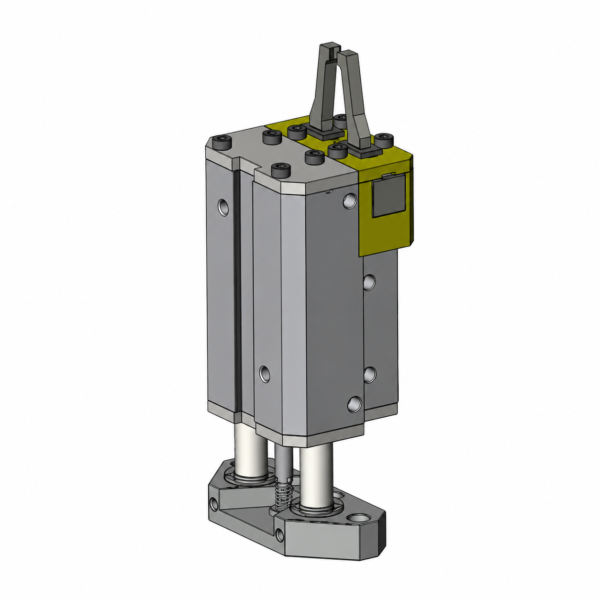

View detailsThe Posalux Tool change Unit is a replacement part for Posalux PCB drilling and routing machines. It belongs to our Tool Magazines & Grippers range and is supplied new, tested and ready to install, so you can restore the machine to its original accuracy without waiting for an OEM back-order.
What the Posalux Tool change Unit Does
Tool magazines, pods, holders, clips and grippers store and transfer drill and router bits during automatic tool change. Precise pockets and grip force prevent dropped tools and changer alarms.
Product Details
PCB CNC Machine parts could be provided with different brand such as Hitachi, Schmoll, Excellon, Posalux, Takisawa etc.
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
When to Replace It
- Tools dropped or mis-picked during change
- Worn or cracked pockets and clips
- Tool change alarms
- Loose tool rings in the pod
How to Confirm Compatibility
Before ordering, please check or send us:
- Machine brand and changer type
- Pod / pocket diameter (e.g. 20 mm)
- Number of holes or positions
- Tool ring size used
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Is the Posalux Tool change Unit new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
When should the Posalux Tool change Unit be replaced?
Typical signs are: tools dropped or mis-picked during change; worn or cracked pockets and clips; tool change alarms; loose tool rings in the pod.
How fast can the Posalux Tool change Unit be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
What information do you need to quote the Posalux Tool change Unit?
Please provide: machine brand and changer type, pod / pocket diameter (e.g. 20 mm), number of holes or positions, tool ring size used. Photos of the installed part also help.
