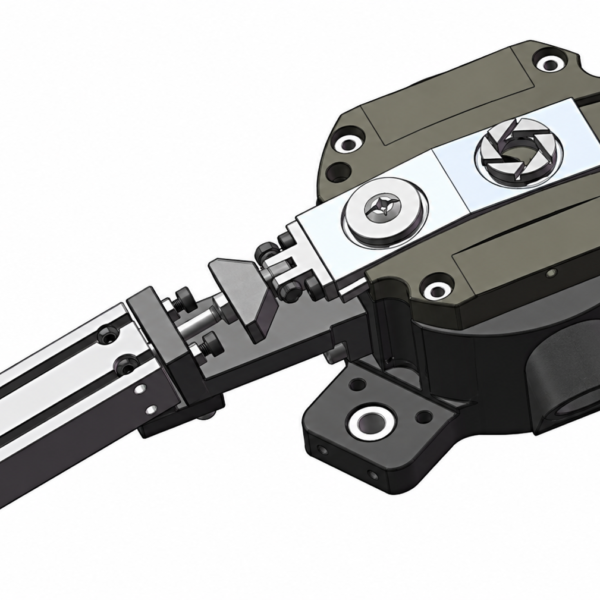

View detailsThe Pressure foot for PCB Tongtai machine is a replacement part for Tongtai PCB drilling and routing machines. It belongs to our Pressure Feet & Brushes range and is supplied new, tested and ready to install, so you can restore the machine to its original accuracy without waiting for an OEM back-order.
What the Pressure foot for PCB Tongtai machine Does
Pressure feet, bushes and brushes hold the panel flat around the tool and extract chips and dust. A worn foot or brush causes burrs, entry-side damage and poor dust extraction.
Product Details
Ordering & Delivery
- Trade Term: EXW Dongguan USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Burrs or lifted copper on the entry side
- Dust left on the panel after drilling
- Bristles worn, uneven or melted
- Cracked or deformed foot body
How to Confirm Compatibility
Before ordering, please check or send us:
- Machine brand and spindle model
- Outer diameter and bush hole size
- Brush length and bristle type
- Vacuum fitting compatibility
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
When should the Pressure foot for PCB Tongtai machine be replaced?
Typical signs are: burrs or lifted copper on the entry side; dust left on the panel after drilling; bristles worn, uneven or melted; cracked or deformed foot body.
What information do you need to quote the Pressure foot for PCB Tongtai machine?
Please provide: machine brand and spindle model, outer diameter and bush hole size, brush length and bristle type, vacuum fitting compatibility. Photos of the installed part also help.
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
Which machines is the Pressure foot for PCB Tongtai machine compatible with?
It is designed for Tongtai PCB drilling and routing machines. Send us the machine model and the original part number and we will confirm the fit before shipment.
