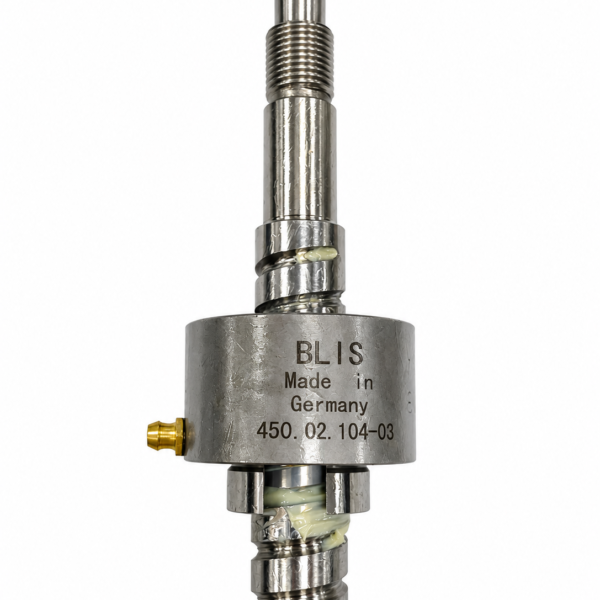

View detailsThe Schmoll Z Axis Ball Screw fits Schmoll PCB drilling and routing machines. As a specialist supplier of PCB machine spares, we keep it in our Other Spare Parts stock and ship it worldwide by express, with technical support to confirm compatibility before you order.
What the Schmoll Z Axis Ball Screw Does
This spare part keeps a PCB drilling or routing machine running at its original accuracy and uptime.
Product Details
Model
Name
Condition
Application
450.02.104-03
Ball screw
New
for Schmoll
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in a
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Alarms related to this assembly
- Visible wear or damage
- Loss of accuracy or repeatability
How to Confirm Compatibility
Before ordering, please check or send us:
- Machine brand and model
- Original part number
- Photos of the installed part
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
How fast can the Schmoll Z Axis Ball Screw be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
Is the Schmoll Z Axis Ball Screw new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
Which machines is the Schmoll Z Axis Ball Screw compatible with?
It is designed for Schmoll PCB drilling and routing machines. Send us the machine model and the original part number (this item: 450.02.104-03) and we will confirm the fit before shipment.
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
