View detailsThe ST Series Drill Bit (2) is a replacement part for PCB drilling machines. It belongs to our Drill & Router Bits range and is supplied new, tested and ready to install, so you can restore the machine to its original accuracy without waiting for an OEM back-order.
What the ST Series Drill Bit (2) Does
Drill and router bits are the cutting tools of the PCB line. Geometry, coating and shank tolerance decide hole wall quality, burr level and how many hits each tool can make.
Product Details

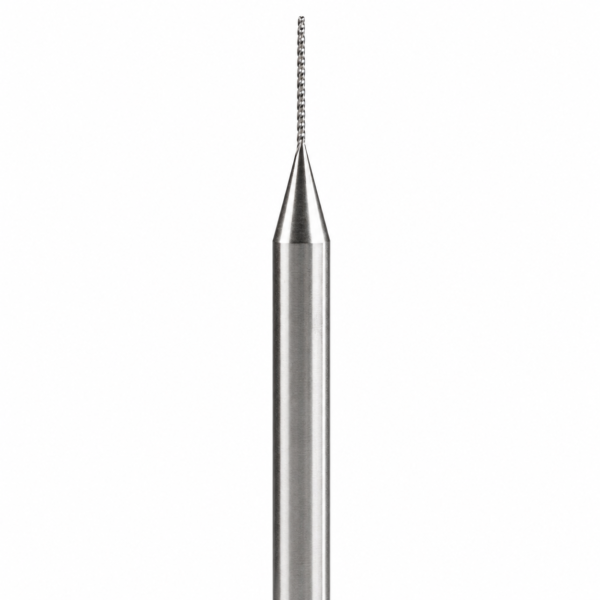

ST 0.10-6.5mm PCB Drill Bits
Straight ST series high hardness drill can guarantee accuracy of hole position, it is suitable for the processing FR-4 ,
environment protection board as well as all kinds of regular FPC board
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Rough hole walls or nail-heading
- Burrs on the exit side
- Rising breakage rate
- Hit count well below the usual tool life
How to Confirm Compatibility
Before ordering, please check or send us:
- Diameter, flute length and shank size
- Material stack (FR-4, high-Tg, aluminium, etc.)
- Coating (e.g. TAC / DLC) where required
- Re-pointing and tool-life settings
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Which machines is the ST Series Drill Bit (2) compatible with?
It is designed for PCB drilling machines. Send us the machine model and the original part number and we will confirm the fit before shipment.
When should the ST Series Drill Bit (2) be replaced?
Typical signs are: rough hole walls or nail-heading; burrs on the exit side; rising breakage rate; hit count well below the usual tool life.
What information do you need to quote the ST Series Drill Bit (2)?
Please provide: diameter, flute length and shank size, material stack (fr-4, high-tg, aluminium, etc.), coating (e.g. tac / dlc) where required, re-pointing and tool-life settings. Photos of the installed part also help.
Is the ST Series Drill Bit (2) new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
