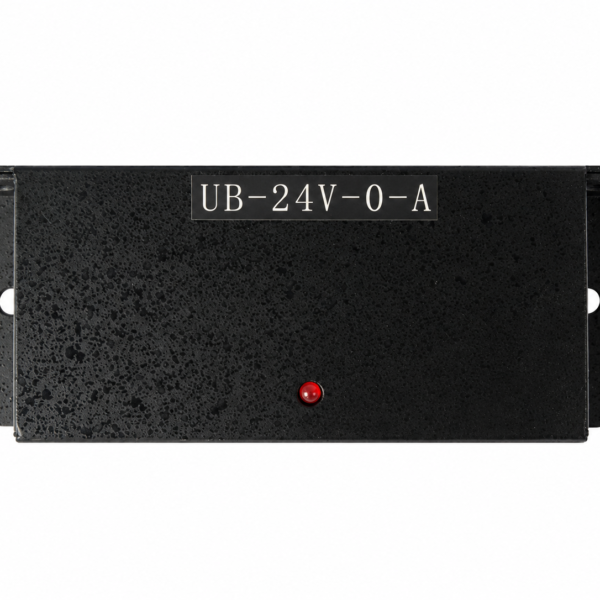

View detailsThe UB-24V-0-A Tool Detection fits PCB drilling and routing machines. As a specialist supplier of PCB machine spares, we keep it in our Sensors & Amplifiers stock and ship it worldwide by express, with technical support to confirm compatibility before you order.
What the UB-24V-0-A Tool Detection Does
Sensors, fibre units and amplifiers detect tool presence, tool length / diameter and broken bits. They protect the panel and the spindle from running with a missing or broken tool.
Product Details
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- False broken-tool alarms
- Tool length or diameter readings drift
- No signal or unstable signal LED
- Damaged fibre cable
How to Confirm Compatibility
Before ordering, please check or send us:
- Sensor / amplifier model
- Supply voltage (e.g. 24 V DC) and output type
- Fibre head type and length
- Machine brand and mounting position
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Which machines is the UB-24V-0-A Tool Detection compatible with?
It is designed for PCB drilling and routing machines. Send us the machine model and the original part number (this item: UB-24V-0-A) and we will confirm the fit before shipment.
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
Is the UB-24V-0-A Tool Detection new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
How fast can the UB-24V-0-A Tool Detection be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
