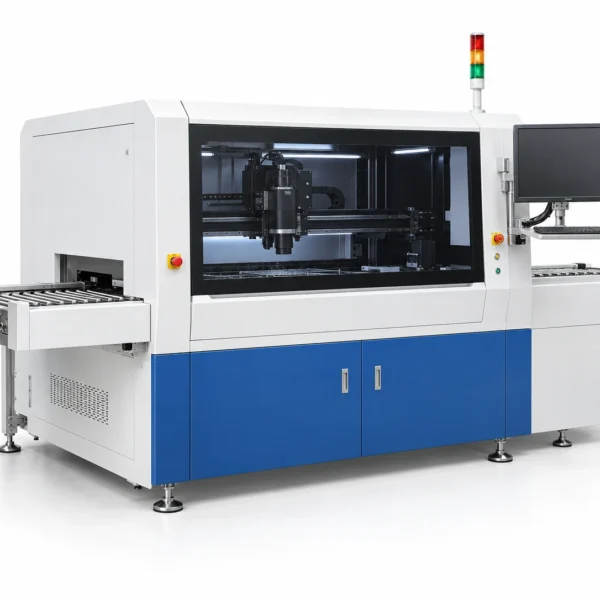

As a inspection & quality machine, the Inline AOI Machine (WET-QC-02) is intended for fabricators who need repeatable output and predictable cost per panel. The system is assembled and tested in-house, then integrated to match the rest of your production line.

Process Position

The Inline AOI Machine operates within the inspection & quality section of the line. Getting the hand-off to the neighbouring cells right matters more to throughput than the headline rating of any single machine, which is why we size it against your real production sequence.

Design Highlights

• Designed for low maintenance, fast changeover and high equipment uptime.
• High-resolution imaging with reference-to-board defect comparison.
• Defect classification and reporting for SPC and traceability.
• Fast handling for inline inspection at production speed.
• Recipe management and process logging via the industrial pc + vision/software.

Common Use Cases

Used for inner-layer and final inspection and electrical test across high-reliability and high-volume production.

Configuration and Ordering

The Inline AOI Machine can be supplied as a standalone unit or built into an automated line. Panel-size handling, control software, throughput, and material compatibility are configured to your production mix. As a configured-to-order system, the specification is finalized with our engineers before quotation.

Talk to Our Engineers

Every Inline AOI Machine is quoted against a real specification, not a list price. Share your requirements and our engineering team will propose a build and confirm pricing and lead time.
