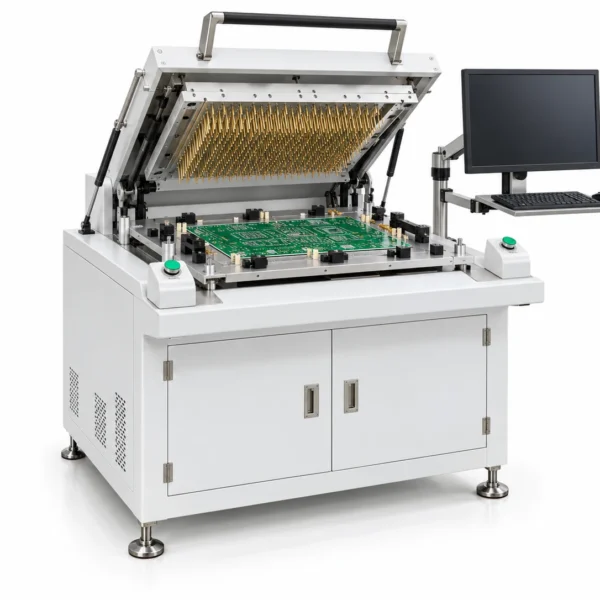

The Manual Universal Test Machine (WET-QC-09) is a inspection & quality system engineered for printed-circuit-board fabrication. Each unit is configured around your panel size, throughput target, and automation level rather than sold as a fixed catalog item, so the specification reflects the work it actually has to do on your line.

Process Position

The Manual Universal Test Machine operates within the inspection & quality section of the line. Getting the hand-off to the neighbouring cells right matters more to throughput than the headline rating of any single machine, which is why we size it against your real production sequence.

Design Highlights

• Designed for low maintenance, fast changeover and high equipment uptime.
• High-resolution imaging with reference-to-board defect comparison.
• Defect classification and reporting for SPC and traceability.
• Fast handling for inline inspection at production speed.
• Recipe management and process logging via the industrial pc + vision/software.

Common Use Cases

Used for inner-layer and final inspection and electrical test across high-reliability and high-volume production.

Configured to Your Line

This is not an off-the-shelf machine. We confirm your panel size, throughput target, and facility services first, then propose a configuration of the Manual Universal Test Machine that fits. Installation guidance and commissioning support are included so the line reaches stable output quickly.

Request a Quotation

Tell us your panel size, throughput, and automation requirements for the Manual Universal Test Machine. Our engineers will respond with a tailored configuration and price, usually within one business day.
