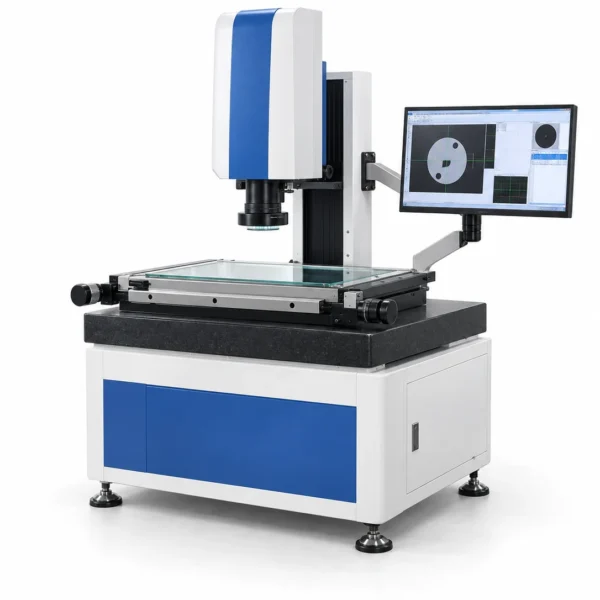

2D Measurement Machine

2D Measurement Machine

2D Measurement Machine

Engineer-configured inspection & quality equipment for consistent results across rigid, multilayer, and HDI boards.

Inspection & Quality
Get a Quote

Description

The 2D Measurement Machine (WET-QC-10) handles a defined step in the PCB process flow as part of the inspection & quality group. It is normally specified together with the cells immediately upstream and downstream of it, which is where most of the yield and cycle-time gains actually come from.

Line Integration

This inspection & quality system is designed to slot into a conveyorized, automated line or run as a standalone cell. The interfaces to upstream loading and downstream handling are configured so material moves cleanly through the inspection & quality step without bottlenecks.

What It Delivers

  • Fast handling for inline inspection at production speed.
  • Recipe management and process logging via the industrial pc + vision/software.
  • Supplied as semi-automatic, with options for line integration.
  • Stainless-steel wetted parts and chemically resistant construction where the process requires it.
  • Safety interlocks, alarms and guarding designed for a production environment.

Typical Applications

Used for inner-layer and final inspection and electrical test across high-reliability and high-volume production.

Build and Support

The 2D Measurement Machine is assembled and tested in-house. Electrical, air, water, and exhaust requirements are detailed in the installation drawing issued before delivery. After commissioning we provide process guidance and spares documentation to keep uptime high.

Get a Tailored Quote

Send us your production details and we will configure the 2D Measurement Machine to match, then return a specification and quotation. We are happy to advise on integration with your existing line.

Frequently Asked Questions

What does the 2D Measurement Machine do in the production line?
The 2D Measurement Machine is configured for a specific stage of the wet-processing or precision-machining sequence. It is usually integrated with the handling and rinse stages around it so that throughput and surface quality stay consistent batch to batch.
Can the 2D Measurement Machine be customised for our process?
Yes. Conveyor width, tooling, control options, and the surrounding handling can be adapted to your panel size, throughput target, and facility constraints. Share your specification and we will propose a configuration.
What is the maximum panel or workpiece size for the 2D Measurement Machine?
This configuration is rated for a maximum panel size of —. Larger or thinner stock can usually be accommodated with tooling changes — confirm the exact window for your job before ordering.
Which materials or board types does the 2D Measurement Machine support?
Supported board types include Rigid, multilayer, HDI (flex / rigid-flex optional). Other substrates can often be qualified with a short process trial — send a sample and we will confirm.

Sources & References

Standards are referenced for context. Always confirm parameters against the current published edition and your own process validation.

D
Reviewed by
Chief Engineer, Wet Etching · WET Etched
Ph.D., Metallurgical & Chemical Engineering, Xiamen University

Technical Parameters

ModelWET-QC-10
Maximum panel size—
Board types supportedRigid, multilayer, HDI (flex / rigid-flex optional)
Automation levelSemi-automatic
Control systemIndustrial PC + vision/software
Throughput30-60 panels/hour
ResolutionLine/space to 25 µm; registration ±15 µm
Power supply3-phase 380-415 V AC, 50/60 Hz
