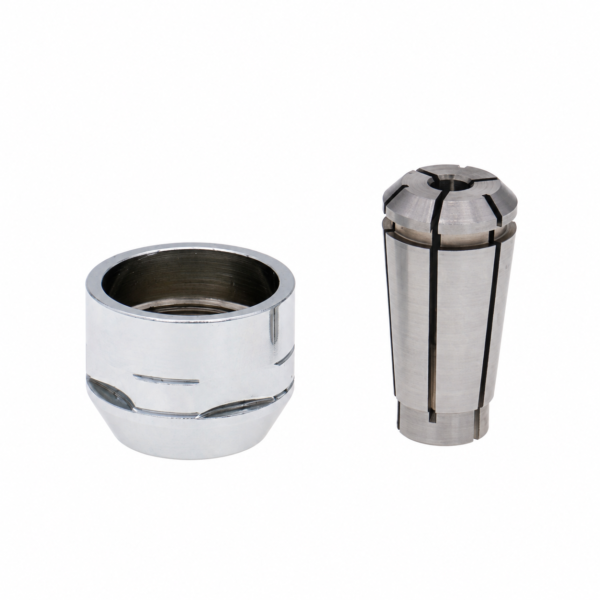

View detailsLooking for a reliable CHK 3.175 Collet? We stock this part for PCB drilling and routing machines as part of our Collets & Wrenches range. Every unit is checked before dispatch and shipped from Shenzhen, so downtime on your drilling or routing line stays short.
What the CHK 3.175 Collet Does
The collet clamps the shank of the drill or router bit inside the spindle. Its gripping force and concentricity directly decide hole position accuracy, bit breakage rate and wall quality.
Product Details
Model
Collet for Lenze Machine
Condition
NEW
Application
For Lenze Machine
Lead Time
1-2 working days
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Bits slip or pull out during drilling
- Rising run-out or oval holes
- Visible wear, cracks or corrosion on the clamping fingers
- Frequent bit breakage at normal feed rates
How to Confirm Compatibility
Before ordering, please check or send us:
- Spindle model and collet part number
- Shank diameter (e.g. 3.175 mm / 1/8")
- Short or long collet version
- Matching collet wrench for safe changeover
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Is the CHK 3.175 Collet new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
What information do you need to quote the CHK 3.175 Collet?
Please provide: spindle model and collet part number, shank diameter (e.g. 3.175 mm / 1/8"), short or long collet version, matching collet wrench for safe changeover. Photos of the installed part also help.
How fast can the CHK 3.175 Collet be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
