View detailsLooking for a reliable CNC Tool detection? We stock this part for PCB drilling and routing machines as part of our Sensors & Amplifiers range. Every unit is checked before dispatch and shipped from Shenzhen, so downtime on your drilling or routing line stays short.
What the CNC Tool detection Does
Sensors, fibre units and amplifiers detect tool presence, tool length / diameter and broken bits. They protect the panel and the spindle from running with a missing or broken tool.
Product Details

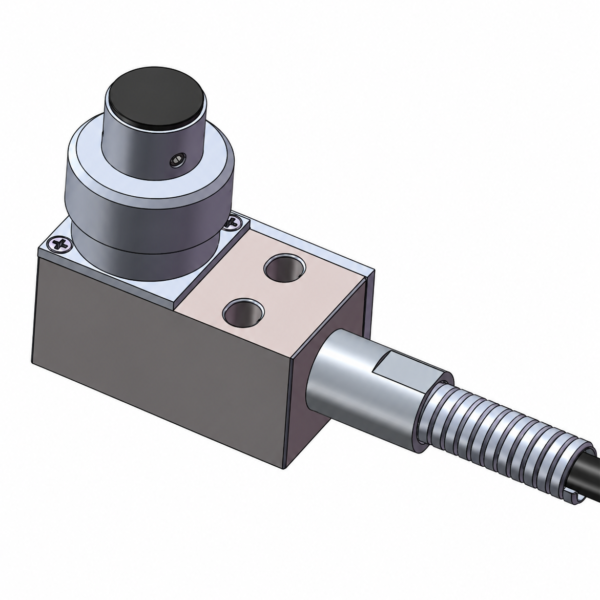

Taliang Tool Diameter Measuring ,contact-type tool measureing
Ordering & Delivery
- Trade Ter
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- False broken-tool alarms
- Tool length or diameter readings drift
- No signal or unstable signal LED
- Damaged fibre cable
How to Confirm Compatibility
Before ordering, please check or send us:
- Sensor / amplifier model
- Supply voltage (e.g. 24 V DC) and output type
- Fibre head type and length
- Machine brand and mounting position
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Which machines is the CNC Tool detection compatible with?
It is designed for PCB drilling and routing machines. Send us the machine model and the original part number and we will confirm the fit before shipment.
How fast can the CNC Tool detection be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
What information do you need to quote the CNC Tool detection?
Please provide: sensor / amplifier model, supply voltage (e.g. 24 v dc) and output type, fibre head type and length, machine brand and mounting position. Photos of the installed part also help.
Is the CNC Tool detection new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
