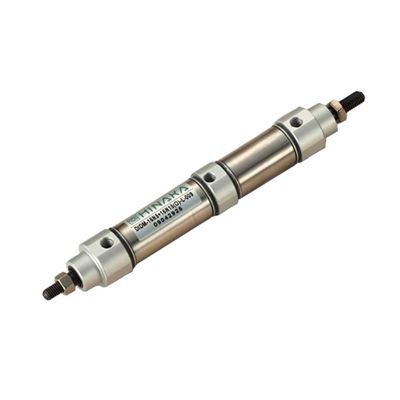

View detailsThe Cylinder DIDM-16N5+16N15(O)-L-R for PCB Tongtai machine fits Tongtai PCB drilling and routing machines. As a specialist supplier of PCB machine spares, we keep it in our Pneumatic Cylinders stock and ship it worldwide by express, with technical support to confirm compatibility before you order.
What the Cylinder DIDM-16N5+16N15(O)-L-R for PCB Tongtai machine Does
Pneumatic cylinders and joints drive the pressure foot, tool clamp and changer movements. Correct bore, stroke and cushioning keep these motions fast and repeatable.
Product Details
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment 100% in advance.
When to Replace It
- Slow or jerky movement
- Air leaking at the rod seal
- Pressure foot not lifting or clamping evenly
- Position sensor alarms
How to Confirm Compatibility
Before ordering, please check or send us:
- Full cylinder code (bore × stroke, suffix)
- Mounting style and rod end
- Sensor / switch type
- Machine brand and position on the head
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
Which machines is the Cylinder DIDM-16N5+16N15(O)-L-R for PCB Tongtai machine compatible with?
It is designed for Tongtai PCB drilling and routing machines. Send us the machine model and the original part number (this item: DIDM-16N5+16N15(O)-L/R) and we will confirm the fit before shipment.
What information do you need to quote the Cylinder DIDM-16N5+16N15(O)-L-R for PCB Tongtai machine?
Please provide: full cylinder code (bore × stroke, suffix), mounting style and rod end, sensor / switch type, machine brand and position on the head. Photos of the installed part also help.
When should the Cylinder DIDM-16N5+16N15(O)-L-R for PCB Tongtai machine be replaced?
Typical signs are: slow or jerky movement; air leaking at the rod seal; pressure foot not lifting or clamping evenly; position sensor alarms.
