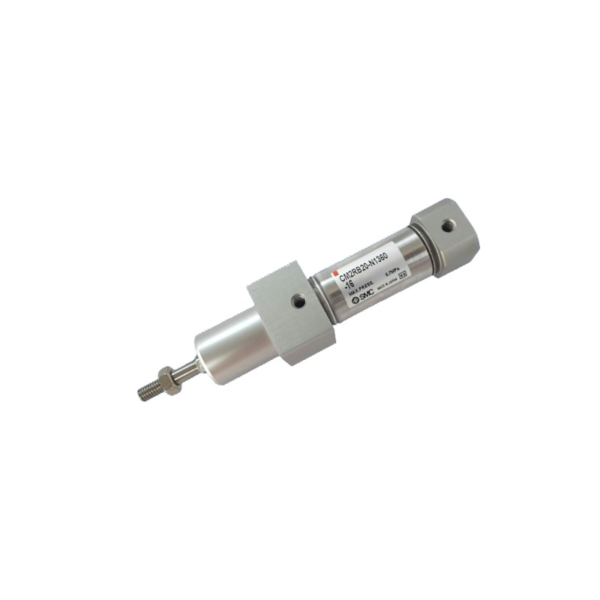

View detailsLooking for a reliable Pneumatic Air Cylinders CM2RB20-N1360-16 for PCB Takisawa Machine? We stock this part for Takisawa PCB drilling and routing machines as part of our Pneumatic Cylinders range. Every unit is checked before dispatch and shipped from Shenzhen, so downtime on your drilling or routing line stays short.
What the Pneumatic Air Cylinders CM2RB20-N1360-16 for PCB Takisawa Machine Does
Pneumatic cylinders and joints drive the pressure foot, tool clamp and changer movements. Correct bore, stroke and cushioning keep these motions fast and repeatable.
Product Details
PCB Spindles and spindle parts, pressure foot cups and pressure foot assemblies, cylinders, cleaning brushs etc. could be provided with high quality.
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment
When to Replace It
- Slow or jerky movement
- Air leaking at the rod seal
- Pressure foot not lifting or clamping evenly
- Position sensor alarms
How to Confirm Compatibility
Before ordering, please check or send us:
- Full cylinder code (bore × stroke, suffix)
- Mounting style and rod end
- Sensor / switch type
- Machine brand and position on the head
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
When should the Pneumatic Air Cylinders CM2RB20-N1360-16 for PCB Takisawa Machine be replaced?
Typical signs are: slow or jerky movement; air leaking at the rod seal; pressure foot not lifting or clamping evenly; position sensor alarms.
How fast can the Pneumatic Air Cylinders CM2RB20-N1360-16 for PCB Takisawa Machine be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
Which machines is the Pneumatic Air Cylinders CM2RB20-N1360-16 for PCB Takisawa Machine compatible with?
It is designed for Takisawa PCB drilling and routing machines. Send us the machine model and the original part number (this item: WETQG-021 Cylinder CM2RB20-N1360-16) and we will confirm the fit before shipment.
