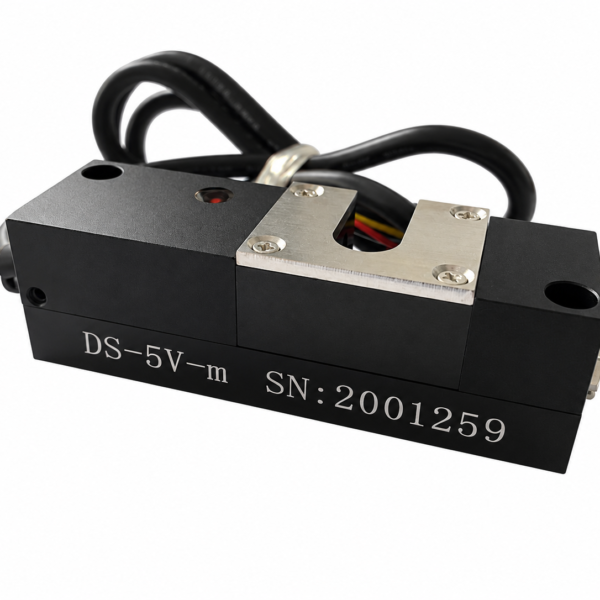

Looking for a reliable DS-5V Laser Tool Measure? We stock this part for PCB drilling and routing machines as part of our Sensors & Amplifiers range. Every unit is checked before dispatch and shipped from Shenzhen, so downtime on your drilling or routing line stays short.
What the DS-5V Laser Tool Measure Does
Sensors, fibre units and amplifiers detect tool presence, tool length / diameter and broken bits. They protect the panel and the spindle from running with a missing or broken tool.
Product Details
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- False broken-tool alarms
- Tool length or diameter readings drift
- No signal or unstable signal LED
- Damaged fibre cable
How to Confirm Compatibility
Before ordering, please check or send us:
- Sensor / amplifier model
- Supply voltage (e.g. 24 V DC) and output type
- Fibre head type and length
- Machine brand and mounting position
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Which machines is the DS-5V Laser Tool Measure compatible with?
It is designed for PCB drilling and routing machines. Send us the machine model and the original part number (this item: DS-5V) and we will confirm the fit before shipment.
What information do you need to quote the DS-5V Laser Tool Measure?
Please provide: sensor / amplifier model, supply voltage (e.g. 24 v dc) and output type, fibre head type and length, machine brand and mounting position. Photos of the installed part also help.
Is the DS-5V Laser Tool Measure new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
How fast can the DS-5V Laser Tool Measure be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
