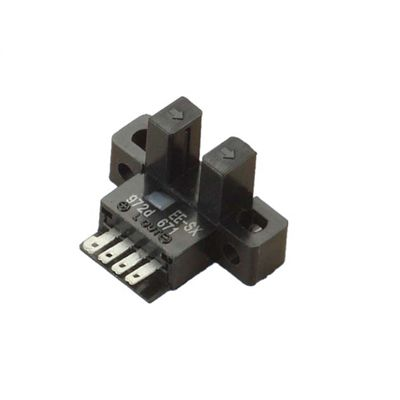

View detailsLooking for a reliable EE SX671 – EE SX671R Sensor for CNC drilling machine? We stock this part for PCB drilling machines as part of our Sensors & Amplifiers range. Every unit is checked before dispatch and shipped from Shenzhen, so downtime on your drilling or routing line stays short.
What the EE SX671 – EE SX671R Sensor for CNC drilling machine Does
Sensors, fibre units and amplifiers detect tool presence, tool length / diameter and broken bits. They protect the panel and the spindle from running with a missing or broken tool.
Product Details
CNC DRILLING MACHINE
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment 100% in advance.
When to Replace It
- False broken-tool alarms
- Tool length or diameter readings drift
- No signal or unstable signal LED
- Damaged fibre cable
How to Confirm Compatibility
Before ordering, please check or send us:
- Sensor / amplifier model
- Supply voltage (e.g. 24 V DC) and output type
- Fibre head type and length
- Machine brand and mounting position
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
Which machines is the EE SX671 – EE SX671R Sensor for CNC drilling machine compatible with?
It is designed for PCB drilling machines. Send us the machine model and the original part number (this item: SX671) and we will confirm the fit before shipment.
What information do you need to quote the EE SX671 – EE SX671R Sensor for CNC drilling machine?
Please provide: sensor / amplifier model, supply voltage (e.g. 24 v dc) and output type, fibre head type and length, machine brand and mounting position. Photos of the installed part also help.
When should the EE SX671 – EE SX671R Sensor for CNC drilling machine be replaced?
Typical signs are: false broken-tool alarms; tool length or diameter readings drift; no signal or unstable signal led; damaged fibre cable.
