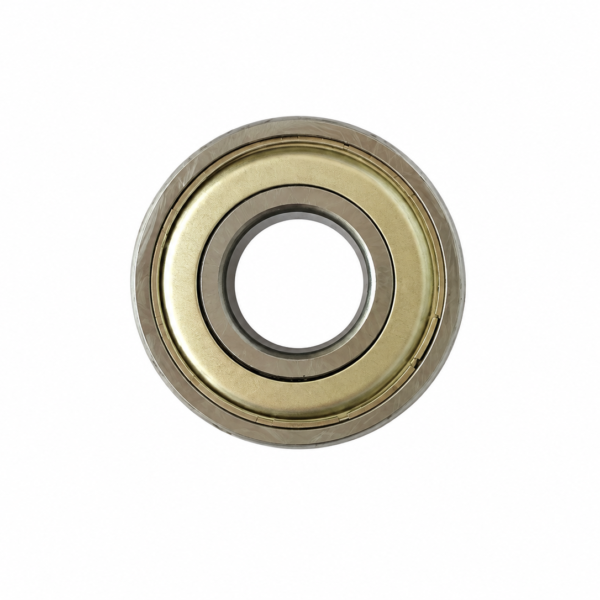

View detailsThe Excellon QD820 Spindle Bearing is a replacement part for Excellon PCB drilling and routing machines. It belongs to our Bearings range and is supplied new, tested and ready to install, so you can restore the machine to its original accuracy without waiting for an OEM back-order.
What the Excellon QD820 Spindle Bearing Does
Air-bearing components (front, rear and thrust bearings) float the high-speed spindle shaft on a thin air film. Their clearance defines stiffness, run-out and maximum RPM of the spindle.
Product Details
Model
Excellon PF Disck Insert PF2530
Condition
NEW
Application
for Excellon Machine
Lead Time
3-5 working days
Other
More
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment
When to Replace It
- Spindle runs hot or stalls at high RPM
- Increased run-out or noise
- Shaft contact marks after a crash
- Air consumption higher than normal
How to Confirm Compatibility
Before ordering, please check or send us:
- Spindle series and rated RPM
- Bearing position (front / rear / thrust)
- Shaft diameter and clearance class
- Clean, dry compressed-air supply after installation
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
What information do you need to quote the Excellon QD820 Spindle Bearing?
Please provide: spindle series and rated rpm, bearing position (front / rear / thrust), shaft diameter and clearance class, clean, dry compressed-air supply after installation. Photos of the installed part also help.
Is the Excellon QD820 Spindle Bearing new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
Which machines is the Excellon QD820 Spindle Bearing compatible with?
It is designed for Excellon PCB drilling and routing machines. Send us the machine model and the original part number (this item: QD820 bearing) and we will confirm the fit before shipment.
When should the Excellon QD820 Spindle Bearing be replaced?
Typical signs are: spindle runs hot or stalls at high rpm; increased run-out or noise; shaft contact marks after a crash; air consumption higher than normal.
Sources & References
- IPC-A-600: Acceptability of Printed Boards
- IPC-6012: Qualification and Performance Specification for Rigid Printed Boards
- Photo Chemical Machining Institute — process capability guidelines
- NIST Engineering Statistics Handbook — process tolerance and capability
Standards are referenced for context. Always confirm parameters against the current published edition and your own process validation.
