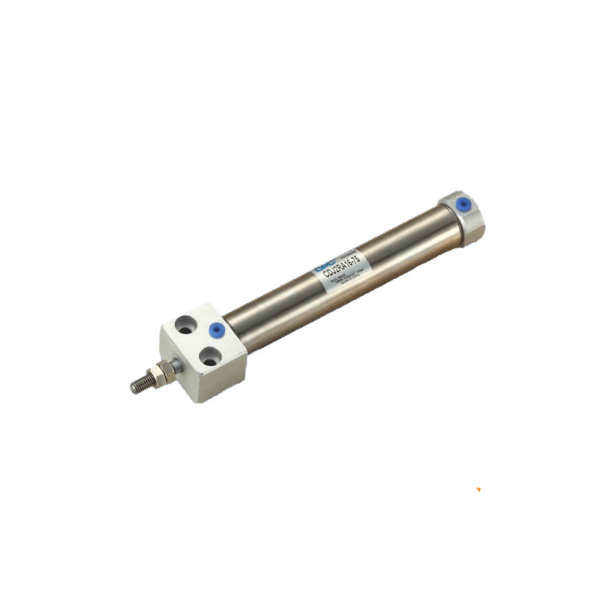

View detailsThe PCB Cylinder CDJ2RA16-75 for Takisawa Machine is a replacement part for Takisawa PCB drilling and routing machines. It belongs to our Pneumatic Cylinders range and is supplied new, tested and ready to install, so you can restore the machine to its original accuracy without waiting for an OEM back-order.
What the PCB Cylinder CDJ2RA16-75 for Takisawa Machine Does
Pneumatic cylinders and joints drive the pressure foot, tool clamp and changer movements. Correct bore, stroke and cushioning keep these motions fast and repeatable.
Product Details
PCB spindles, bearings, cylinders, collets, tool change, brush etc. could be provided in WET with high quality.
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment
When to Replace It
- Slow or jerky movement
- Air leaking at the rod seal
- Pressure foot not lifting or clamping evenly
- Position sensor alarms
How to Confirm Compatibility
Before ordering, please check or send us:
- Full cylinder code (bore × stroke, suffix)
- Mounting style and rod end
- Sensor / switch type
- Machine brand and position on the head
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
When should the PCB Cylinder CDJ2RA16-75 for Takisawa Machine be replaced?
Typical signs are: slow or jerky movement; air leaking at the rod seal; pressure foot not lifting or clamping evenly; position sensor alarms.
Which machines is the PCB Cylinder CDJ2RA16-75 for Takisawa Machine compatible with?
It is designed for Takisawa PCB drilling and routing machines. Send us the machine model and the original part number (this item: WETQG-016 Cylinder CDJ2RA16-75) and we will confirm the fit before shipment.
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
Is the PCB Cylinder CDJ2RA16-75 for Takisawa Machine new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
