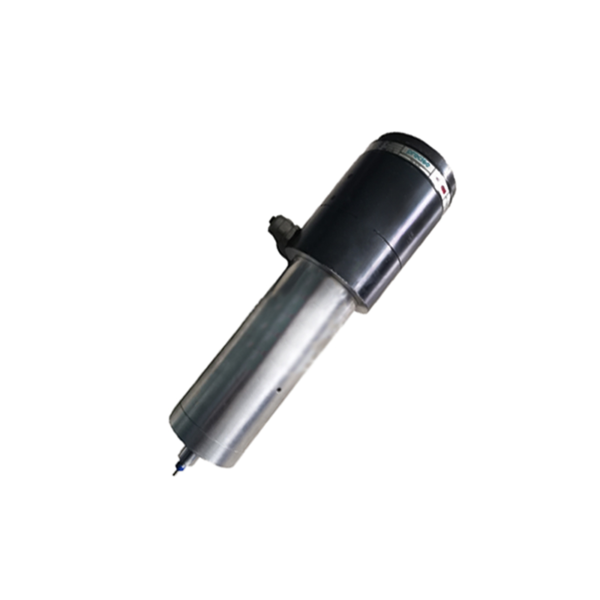

View detailsLooking for a reliable PCB Precise Routing Spindle SC63 SC53H? We stock this part for Precise PCB routing machines as part of our Spindles & Shafts range. Every unit is checked before dispatch and shipped from Shenzhen, so downtime on your drilling or routing line stays short.
What the PCB Precise Routing Spindle SC63 SC53H Does
Spindles, shafts, stators and coils form the drive of the PCB drilling or routing head. Speed stability, run-out and thermal behaviour of these parts set the achievable hole quality and tool life.
Product Details
All kinds of pcb spindle for brand Hitachi, Excellon, Schmoll, Precise could be provided with good cheaper price.
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment 100% in advance.
When to Replace It
- Speed drops under load or will not reach rated RPM
- Run-out out of tolerance
- Overheating, burnt smell or insulation damage on the stator
- Damaged shaft taper after a crash
How to Confirm Compatibility
Before ordering, please check or send us:
- Spindle series and rated speed
- Shaft / stator part number
- Collet type used by the shaft
- Machine brand and head type
Looking for complete machines? See our Profiling & Routing and Drilling & Via Formation.
Technical Questions
What information do you need to quote the PCB Precise Routing Spindle SC63 SC53H?
Please provide: spindle series and rated speed, shaft / stator part number, collet type used by the shaft, machine brand and head type. Photos of the installed part also help.
When should the PCB Precise Routing Spindle SC63 SC53H be replaced?
Typical signs are: speed drops under load or will not reach rated rpm; run-out out of tolerance; overheating, burnt smell or insulation damage on the stator; damaged shaft taper after a crash.
Which machines is the PCB Precise Routing Spindle SC63 SC53H compatible with?
It is designed for Precise PCB routing machines. Send us the machine model and the original part number (this item: Precise SC63 SC53H) and we will confirm the fit before shipment.
How fast can the PCB Precise Routing Spindle SC63 SC53H be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
