Depth Control 6 Spindles PCB Routing Machine DR16

Depth Control 6 Spindles PCB Routing Machine DR16

Depth Control 6 Spindles PCB Routing Machine DR16

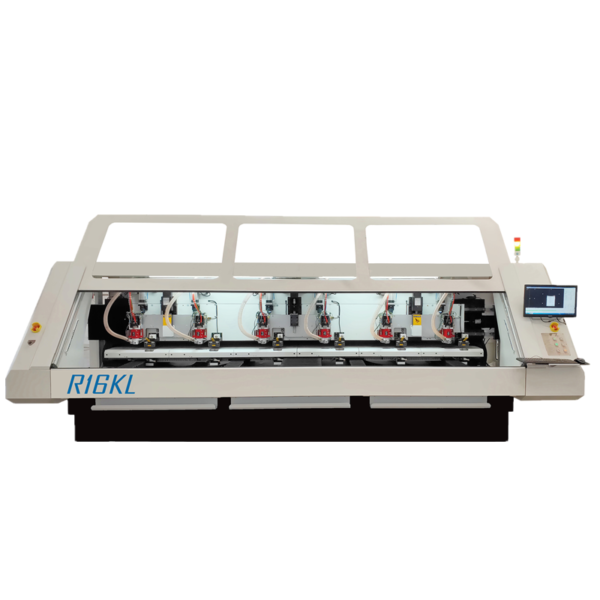

Depth Control 6 Spindles PCB Routing Machine with the new design of auto pinning function.

Profiling & Routing
Get a Quote

Description

Depth Control 6 Spindles PCB Routing Machine with the new design of auto pinning function.

X Y Z axis all use high precision Renishaw linear scale

Tool broken detection

Depth control precision ±0.05mm

Z axis independent control

CCD cameras

Spindle reverse milling function

Ordering & Delivery

  • Trade Term: FOB Shenzhen USD by T/T in advance.
  • Discount is allowed against your quantity.
  • OED/OEM is accepted.
  • Delivery will be carried out by Express or your requirement.
  • Lead Time: 2~7 days after payment.

Frequently Asked Questions

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.

Frequently Asked Questions

What is the maximum panel or workpiece size for the Depth Control 6 Spindles PCB Routing Machine DR16?
This configuration is rated for a maximum panel size of 4.4m×1.93m×1.60m（L×W×H）. Larger or thinner stock can usually be accommodated with tooling changes — confirm the exact window for your job before ordering.
What materials is the Depth Control 6 Spindles PCB Routing Machine DR16 suitable for?
Material compatibility is confirmed against your substrate during process qualification. A small sample run is the fastest way to validate fit before committing to production.
How is throughput determined for the Depth Control 6 Spindles PCB Routing Machine DR16?
Throughput depends on material thickness, feature density, and the inspection target. We size the machine against your real production mix rather than a single nominal number.
Can the Depth Control 6 Spindles PCB Routing Machine DR16 be customised for our process?
Yes. Conveyor width, tooling, control options, and the surrounding handling can be adapted to your panel size, throughput target, and facility constraints. Share your specification and we will propose a configuration.

Sources & References

Standards are referenced for context. Always confirm parameters against the current published edition and your own process validation.

D
Reviewed by
Chief Engineer, Wet Etching · WET Etched
Ph.D., Metallurgical & Chemical Engineering, Xiamen University

Technical Parameters

No. of Spindle6
Spindle Speed60k rpm / min
Processing area of each axis580mm×730mm
XYZ axial movement stroke600mm×825mm×55mm
Number of tools per axis66 pcs
Routing diameterφ0.6-φ3.175mm :
ModelDepth Control PCB CNC Router_DR16
No. of Z axis6
Drilling diameterφ0.5-φ6.35mm
Milling diameterφ0.6-φ3.175mm
XY Axial max. movement speed35m/min
Ｚ Axial max. movement speed25m/min
System resolution ratio0.001mm
Positioning Accuracy±0.01mm
Repeatability Accuracy±0.005mm
Routing precision±0.05mm
Depth control precision±0.05mm
Power requirements3P/380V/50Hz (±5%); 3KW
Compressed air requirement300L/min
Cooling water requirement18℃-25℃
Environmental temperature20℃-25℃
Ambient humidity50%-75%
Noise≤75dBA
Machine Size4.4m×1.93m×1.60m（L×W×H）
Machine Weight8000kg
