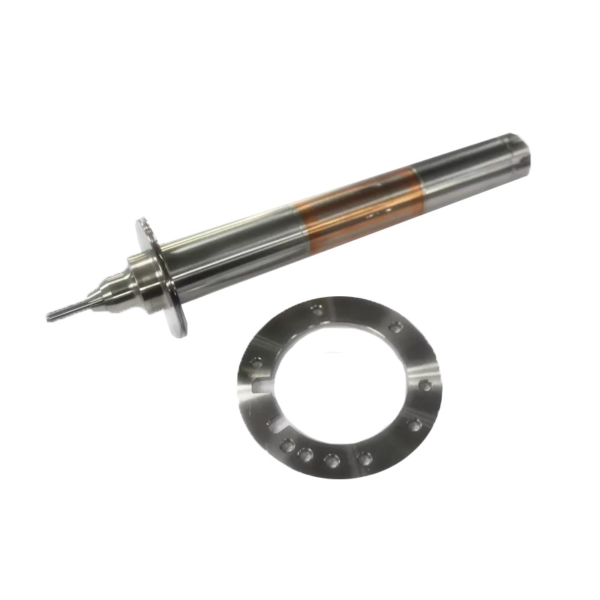

The PCB Spindle Shaft 1822 for PCB CNC Machine fits PCB drilling and routing machines. As a specialist supplier of PCB machine spares, we keep it in our Spindles & Shafts stock and ship it worldwide by express, with technical support to confirm compatibility before you order.
What the PCB Spindle Shaft 1822 for PCB CNC Machine Does
Spindles, shafts, stators and coils form the drive of the PCB drilling or routing head. Speed stability, run-out and thermal behaviour of these parts set the achievable hole quality and tool life.
Product Details
PCB ATC spindles and spindle spares could be provided with different brand such as HItachi, WW, Excellon, Precise, Schmoll etc.
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Speed drops under load or will not reach rated RPM
- Run-out out of tolerance
- Overheating, burnt smell or insulation damage on the stator
- Damaged shaft taper after a crash
How to Confirm Compatibility
Before ordering, please check or send us:
- Spindle series and rated speed
- Shaft / stator part number
- Collet type used by the shaft
- Machine brand and head type
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Which machines is the PCB Spindle Shaft 1822 for PCB CNC Machine compatible with?
It is designed for PCB drilling and routing machines. Send us the machine model and the original part number (this item: PCB Spindle Shaft D1822) and we will confirm the fit before shipment.
What information do you need to quote the PCB Spindle Shaft 1822 for PCB CNC Machine?
Please provide: spindle series and rated speed, shaft / stator part number, collet type used by the shaft, machine brand and head type. Photos of the installed part also help.
When should the PCB Spindle Shaft 1822 for PCB CNC Machine be replaced?
Typical signs are: speed drops under load or will not reach rated rpm; run-out out of tolerance; overheating, burnt smell or insulation damage on the stator; damaged shaft taper after a crash.
Is the PCB Spindle Shaft 1822 for PCB CNC Machine new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
Sources & References
- IPC-A-600: Acceptability of Printed Boards
- IPC-6012: Qualification and Performance Specification for Rigid Printed Boards
- Photo Chemical Machining Institute — process capability guidelines
- NIST Engineering Statistics Handbook — process tolerance and capability
Standards are referenced for context. Always confirm parameters against the current published edition and your own process validation.
