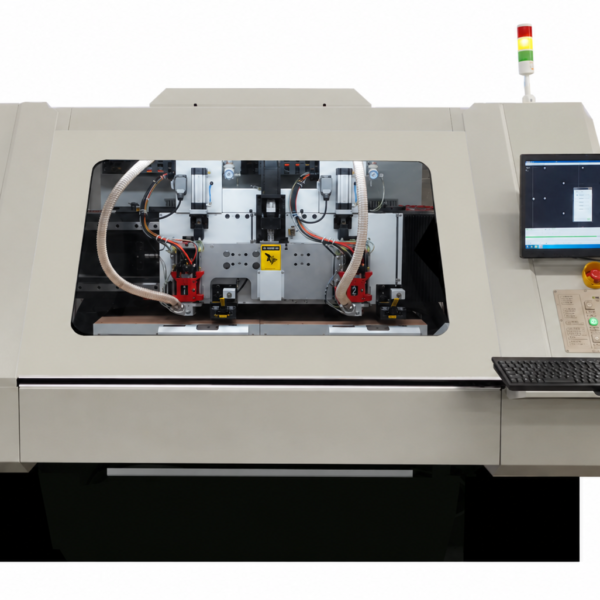

CNC 2-Spindles PCB Routing Machine D12KL

CNC 2-Spindles PCB Routing Machine D12KL

CNC 2-Spindles PCB Routing Machine D12KL

Routing in pcb is the important process. And we have our own professional team and the factory covering an area of 20,000 square meters. We could provide the pcb routing machine with 2 spindles, 4 spindles, 6 spindles et

Profiling & Routing
Get a Quote WhatsApp

Description

Routing in pcb is the important process. And we have our own professional team and the factory covering an area of 20,000 square meters. We could provide the pcb routing machine with 2 spindles, 4 spindles, 6 spindles etc.with Automatic pinning &De-ping f

Technical Features

Natural-granite base

CBD Electrical Connected Broken-tool Detection

Real-time response, no missing-routing

Frequently Asked Questions

What are the utility requirements for the CNC 2-Spindles PCB Routing Machine D12KL?
Electrical supply is specified at 3P/380V/50Hz (±5%); 3KW. Compressed air, water, and exhaust connections are detailed in the installation drawing supplied before delivery.
What level of automation does the CNC 2-Spindles PCB Routing Machine D12KL offer?
Operation is recipe-driven through an operator interface, with process values logged so that results stay repeatable across shifts and operators.
What materials is the CNC 2-Spindles PCB Routing Machine D12KL suitable for?
Material compatibility is confirmed against your substrate during process qualification. A small sample run is the fastest way to validate fit before committing to production.
How is throughput determined for the CNC 2-Spindles PCB Routing Machine D12KL?
Throughput depends on material thickness, feature density, and the inspection target. We size the machine against your real production mix rather than a single nominal number.

Sources & References

Standards are referenced for context. Always confirm parameters against the current published edition and your own process validation.

D
Reviewed by
Chief Engineer, Wet Etching · WET Etched
Ph.D., Metallurgical & Chemical Engineering, Xiamen University

Technical Parameters

No.of Z axis1
No.of Spindle2
Spindle Speed60k rpm / min
Processing area of each axis680mm×830mm
XYZ axial movement stroke700mm×925mm×55mm
Drilling diameterφ0.5-φ6.35mm
Tool changeHitachi Or Euro method
OptionalAutomatic collet cleaning function
ModelPCB CNC Router_R12KL
No. of Z axis1
No. of Spindle2
Number of tools per axis66 pcs
Milling diameterφ0.6-φ3.175mm
XY Axial max. movement speed28m/min
Ｚ Axial max. movement speed25m/min
System resolution ratio0.001mm
Positioning Accuracy±0.01mm
Repeatability Accuracy±0.005mm
Routing precision±0.05mm
Power requirements3P/380V/50Hz (±5%); 3KW
Compressed air requirement300L/min
Cooling water requirement18℃-25℃
Environmental temperature20℃-25℃
Ambient humidity50%-75%
Noise≤75dBA
Machine Size2290mm×2180mm×1600mm (L×W×H)
Accessories nameSpecifications / Quantity / Brand
X axis- ball screw25×10-1180 / 1 / HIWIN(Taiwan, China)
Y axis- ball screw25×10-1180 / 1 / HIWIN(Taiwan, China)
Z axis- ball screw25×10-320 / 1 / HIWIN(Taiwan, China)
X axis-guide rail and slide block30×1560 / 2 / HIWIN(Taiwan, China)
Y axis-guide rail and slide block30×1300 / 2 / HIWIN(Taiwan, China)
Z axis-guide rail and slide block20×280 / 20×160 / 2/2 / HIWIN(Taiwan, China)
X/Y/Z axis-Servo Motor and Driver2KW / 3 / Delta(Taiwan, China)
X/Y/Z axis- BearingBS2047TN1/P4GB / 6 / NSK(Japan)
SpindleKL-60C—2E / 2 / KLKJ（China）
