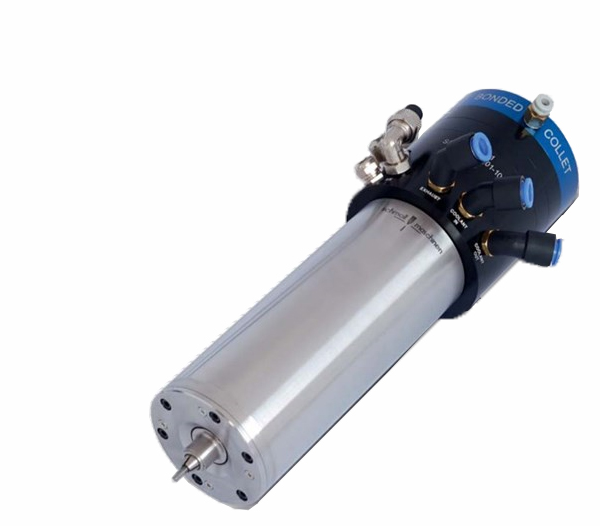

View detailsThe Refurbished Schmoll Drilling Spindle T200 High Speed Air Bearing Spindle fits Schmoll PCB drilling machines. As a specialist supplier of PCB machine spares, we keep it in our Bearings stock and ship it worldwide by express, with technical support to confirm compatibility before you order.
What the Refurbished Schmoll Drilling Spindle T200 High Speed Air Bearing Spindle Does
Air-bearing components (front, rear and thrust bearings) float the high-speed spindle shaft on a thin air film. Their clearance defines stiffness, run-out and maximum RPM of the spindle.
Product Details
Spindle Model Type
T200
Spindle Max Speed
200k rpm
Drilling Dia Range
0.2mm-6.5mm
Application
Schmoll Drilling Machine
Condition
Refurb
With more than 20 years experience Serving the PCB Drilling and Routing Industry ,We can repair most types spindles used in PCB Industry
specializing in high speed air bearing spindle, such as West wind spindles, Posalux, Excellon etc…and we can also repair the CNC spindles,
Servo motor, PCB card .
When to Replace It
- Spindle runs hot or stalls at high RPM
- Increased run-out or noise
- Shaft contact marks after a crash
- Air consumption higher than normal
How to Confirm Compatibility
Before ordering, please check or send us:
- Spindle series and rated RPM
- Bearing position (front / rear / thrust)
- Shaft diameter and clearance class
- Clean, dry compressed-air supply after installation
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Which machines is the Refurbished Schmoll Drilling Spindle T200 High Speed Air Bearing Spindle compatible with?
It is designed for Schmoll PCB drilling machines. Send us the machine model and the original part number (this item: T200) and we will confirm the fit before shipment.
What information do you need to quote the Refurbished Schmoll Drilling Spindle T200 High Speed Air Bearing Spindle?
Please provide: spindle series and rated rpm, bearing position (front / rear / thrust), shaft diameter and clearance class, clean, dry compressed-air supply after installation. Photos of the installed part also help.
Is the Refurbished Schmoll Drilling Spindle T200 High Speed Air Bearing Spindle new or refurbished?
The item is supplied in refurbished condition with a 3 months warranty. Every part is inspected before it is packed.
How fast can the Refurbished Schmoll Drilling Spindle T200 High Speed Air Bearing Spindle be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
