View detailsLooking for a reliable PCB Taliang Pressure Foot Assembly Vacuum Fitting? We stock this part for Taliang PCB drilling and routing machines as part of our Pressure Feet & Brushes range. Every unit is checked before dispatch and shipped from Shenzhen, so downtime on your drilling or routing line stays short.

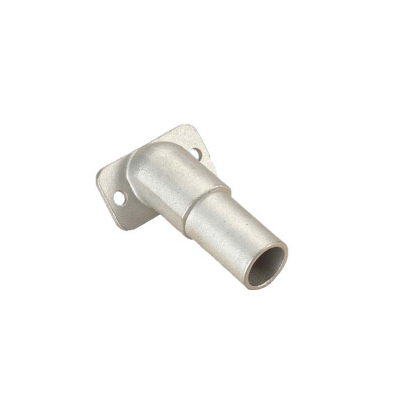

What the PCB Taliang Pressure Foot Assembly Vacuum Fitting Does
Pressure feet, bushes and brushes hold the panel flat around the tool and extract chips and dust. A worn foot or brush causes burrs, entry-side damage and poor dust extraction.
Product Details
PCB Taliang CNC Drilling Machine parts could be provided such as the pressure foot cups and pressure foot assemblies, spindles, cylinders, vacuum fittings etc.
Application for Taliang Pressure Foot Cup
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Burrs or lifted copper on the entry side
- Dust left on the panel after drilling
- Bristles worn, uneven or melted
- Cracked or deformed foot body
How to Confirm Compatibility
Before ordering, please check or send us:
- Machine brand and spindle model
- Outer diameter and bush hole size
- Brush length and bristle type
- Vacuum fitting compatibility
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
When should the PCB Taliang Pressure Foot Assembly Vacuum Fitting be replaced?
Typical signs are: burrs or lifted copper on the entry side; dust left on the panel after drilling; bristles worn, uneven or melted; cracked or deformed foot body.
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
Is the PCB Taliang Pressure Foot Assembly Vacuum Fitting new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
Which machines is the PCB Taliang Pressure Foot Assembly Vacuum Fitting compatible with?
It is designed for Taliang PCB drilling and routing machines. Send us the machine model and the original part number (this item: WETCJ-001 Vacuum Fitting) and we will confirm the fit before shipment.
