View detailsLooking for a reliable Shaft D1686-12 for Westwind air spindle? We stock this part for Westwind PCB drilling and routing machines as part of our Spindles & Shafts range. Every unit is checked before dispatch and shipped from Shenzhen, so downtime on your drilling or routing line stays short.
What the Shaft D1686-12 for Westwind air spindle Does
Spindles, shafts, stators and coils form the drive of the PCB drilling or routing head. Speed stability, run-out and thermal behaviour of these parts set the achievable hole quality and tool life.
Product Details

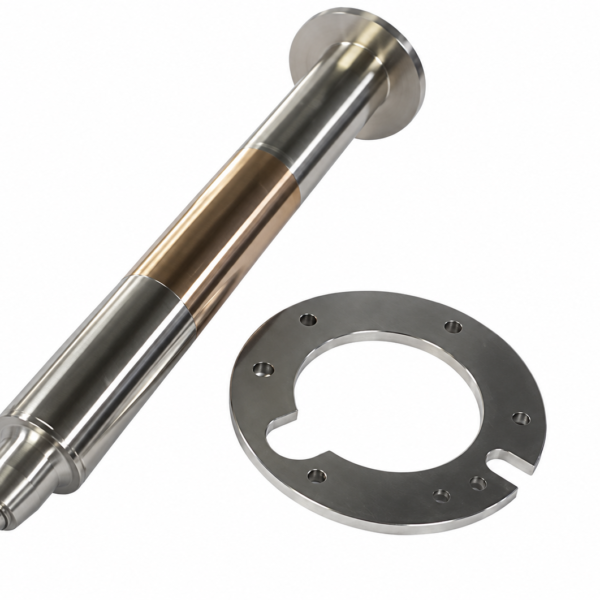

Shaft for D1686-12 westwind air spindle , which used for PCB drilling machine, like Schmoll drilling machine
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Speed drops under load or will not reach rated RPM
- Run-out out of tolerance
- Overheating, burnt smell or insulation damage on the stator
- Damaged shaft taper after a crash
How to Confirm Compatibility
Before ordering, please check or send us:
- Spindle series and rated speed
- Shaft / stator part number
- Collet type used by the shaft
- Machine brand and head type
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Which machines is the Shaft D1686-12 for Westwind air spindle compatible with?
It is designed for Westwind PCB drilling and routing machines. Send us the machine model and the original part number (this item: D1686-12) and we will confirm the fit before shipment.
Is the Shaft D1686-12 for Westwind air spindle new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
What information do you need to quote the Shaft D1686-12 for Westwind air spindle?
Please provide: spindle series and rated speed, shaft / stator part number, collet type used by the shaft, machine brand and head type. Photos of the installed part also help.
How fast can the Shaft D1686-12 for Westwind air spindle be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
