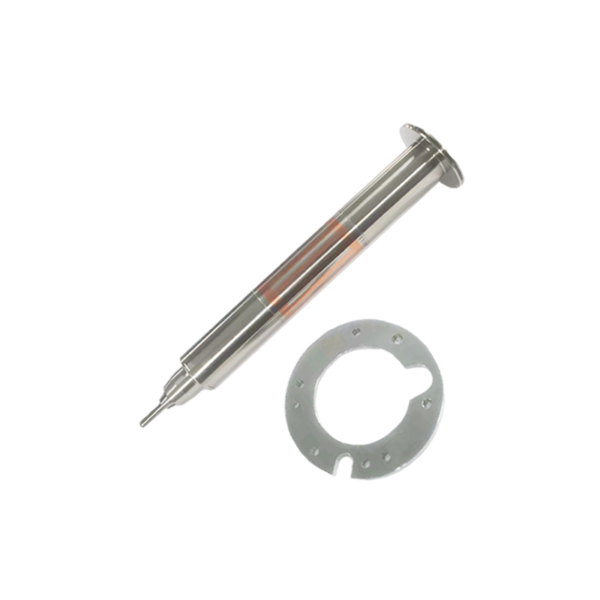

View detailsThe Westwind PCB Spindle Shaft D1686-180 fits Westwind PCB drilling and routing machines. As a specialist supplier of PCB machine spares, we keep it in our Spindles & Shafts stock and ship it worldwide by express, with technical support to confirm compatibility before you order.
What the Westwind PCB Spindle Shaft D1686-180 Does
Spindles, shafts, stators and coils form the drive of the PCB drilling or routing head. Speed stability, run-out and thermal behaviour of these parts set the achievable hole quality and tool life.
Product Details
PCB Spindle spare parts for D1686 series could be offered with manufacturing price and high quality, such as the spindle shaft, stator, bearings, collets etc.
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Speed drops under load or will not reach rated RPM
- Run-out out of tolerance
- Overheating, burnt smell or insulation damage on the stator
- Damaged shaft taper after a crash
How to Confirm Compatibility
Before ordering, please check or send us:
- Spindle series and rated speed
- Shaft / stator part number
- Collet type used by the shaft
- Machine brand and head type
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Which machines is the Westwind PCB Spindle Shaft D1686-180 compatible with?
It is designed for Westwind PCB drilling and routing machines. Send us the machine model and the original part number (this item: Spindle Shaft D1686-180) and we will confirm the fit before shipment.
Is the Westwind PCB Spindle Shaft D1686-180 new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
What information do you need to quote the Westwind PCB Spindle Shaft D1686-180?
Please provide: spindle series and rated speed, shaft / stator part number, collet type used by the shaft, machine brand and head type. Photos of the installed part also help.
How fast can the Westwind PCB Spindle Shaft D1686-180 be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
