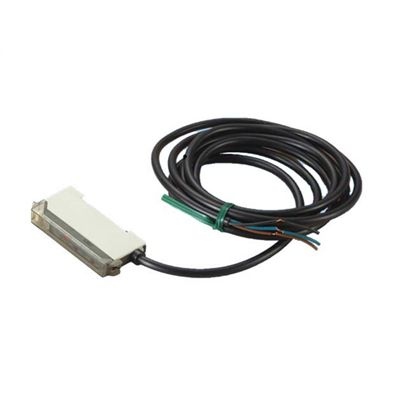

View detailsThe TAKEX-F71CR Aplifiers for PCB drilling machine position is a replacement part for TAKEX PCB drilling machines. It belongs to our Sensors & Amplifiers range and is supplied new, tested and ready to install, so you can restore the machine to its original accuracy without waiting for an OEM back-order.
What the TAKEX-F71CR Aplifiers for PCB drilling machine position Does
Sensors, fibre units and amplifiers detect tool presence, tool length / diameter and broken bits. They protect the panel and the spindle from running with a missing or broken tool.
Product Details
for PCB CNC machine
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment 100% in advance.
When to Replace It
- False broken-tool alarms
- Tool length or diameter readings drift
- No signal or unstable signal LED
- Damaged fibre cable
How to Confirm Compatibility
Before ordering, please check or send us:
- Sensor / amplifier model
- Supply voltage (e.g. 24 V DC) and output type
- Fibre head type and length
- Machine brand and mounting position
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Which machines is the TAKEX-F71CR Aplifiers for PCB drilling machine position compatible with?
It is designed for TAKEX PCB drilling machines. Send us the machine model and the original part number (this item: TAKEX-F71CR) and we will confirm the fit before shipment.
Is the TAKEX-F71CR Aplifiers for PCB drilling machine position new or refurbished?
The item is supplied in new condition with a 3 months warranty. Every part is inspected before it is packed.
How fast can the TAKEX-F71CR Aplifiers for PCB drilling machine position be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
When should the TAKEX-F71CR Aplifiers for PCB drilling machine position be replaced?
Typical signs are: false broken-tool alarms; tool length or diameter readings drift; no signal or unstable signal led; damaged fibre cable.
