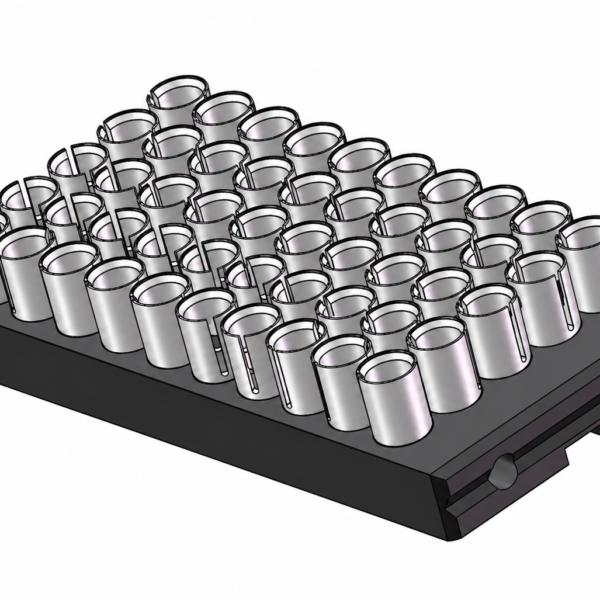

View detailsThe Tool magazine for Hitachi Drilling Machine is a replacement part for Hitachi PCB drilling machines. It belongs to our Tool Magazines & Grippers range and is supplied new, tested and ready to install, so you can restore the machine to its original accuracy without waiting for an OEM back-order.
What the Tool magazine for Hitachi Drilling Machine Does
Tool magazines, pods, holders, clips and grippers store and transfer drill and router bits during automatic tool change. Precise pockets and grip force prevent dropped tools and changer alarms.
Product Details
pcb tool changes for all kinds of pcb routing machine such as Hitachi, Schmoll, Anderson etc.
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Tools dropped or mis-picked during change
- Worn or cracked pockets and clips
- Tool change alarms
- Loose tool rings in the pod
How to Confirm Compatibility
Before ordering, please check or send us:
- Machine brand and changer type
- Pod / pocket diameter (e.g. 20 mm)
- Number of holes or positions
- Tool ring size used
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
What information do you need to quote the Tool magazine for Hitachi Drilling Machine?
Please provide: machine brand and changer type, pod / pocket diameter (e.g. 20 mm), number of holes or positions, tool ring size used. Photos of the installed part also help.
Is the Tool magazine for Hitachi Drilling Machine new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
Which machines is the Tool magazine for Hitachi Drilling Machine compatible with?
It is designed for Hitachi PCB drilling machines. Send us the machine model and the original part number (this item: Hitachi Drilling Machine Tool holder) and we will confirm the fit before shipment.
When should the Tool magazine for Hitachi Drilling Machine be replaced?
Typical signs are: tools dropped or mis-picked during change; worn or cracked pockets and clips; tool change alarms; loose tool rings in the pod.
Sources & References
- IPC-A-600: Acceptability of Printed Boards
- IPC-6012: Qualification and Performance Specification for Rigid Printed Boards
- Photo Chemical Machining Institute — process capability guidelines
- NIST Engineering Statistics Handbook — process tolerance and capability
Standards are referenced for context. Always confirm parameters against the current published edition and your own process validation.
