View detailsLooking for a reliable UCH Series Drill Bit? We stock this part for PCB drilling machines as part of our Drill & Router Bits range. Every unit is checked before dispatch and shipped from Shenzhen, so downtime on your drilling or routing line stays short.
What the UCH Series Drill Bit Does
Drill and router bits are the cutting tools of the PCB line. Geometry, coating and shank tolerance decide hole wall quality, burr level and how many hits each tool can make.
Product Details

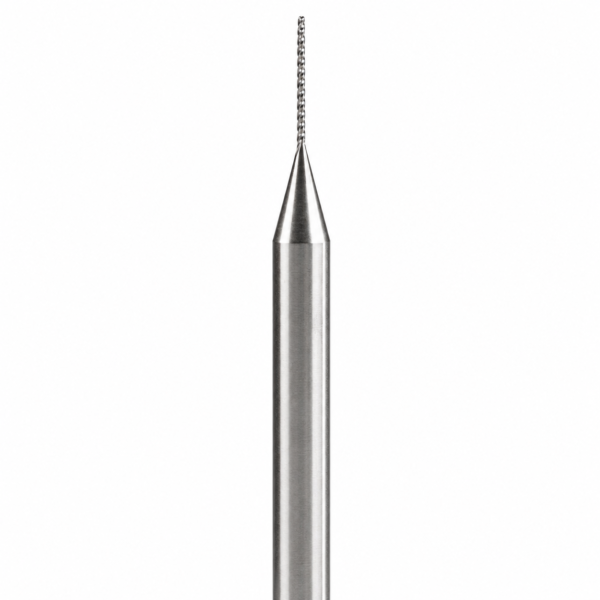

UCH 0.10-0.45mm PCB micro Drill Bits
Suitable for Various kind of boards,especially for Hi-TG board
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Rough hole walls or nail-heading
- Burrs on the exit side
- Rising breakage rate
- Hit count well below the usual tool life
How to Confirm Compatibility
Before ordering, please check or send us:
- Diameter, flute length and shank size
- Material stack (FR-4, high-Tg, aluminium, etc.)
- Coating (e.g. TAC / DLC) where required
- Re-pointing and tool-life settings
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
What information do you need to quote the UCH Series Drill Bit?
Please provide: diameter, flute length and shank size, material stack (fr-4, high-tg, aluminium, etc.), coating (e.g. tac / dlc) where required, re-pointing and tool-life settings. Photos of the installed part also help.
Which machines is the UCH Series Drill Bit compatible with?
It is designed for PCB drilling machines. Send us the machine model and the original part number and we will confirm the fit before shipment.
When should the UCH Series Drill Bit be replaced?
Typical signs are: rough hole walls or nail-heading; burrs on the exit side; rising breakage rate; hit count well below the usual tool life.
How fast can the UCH Series Drill Bit be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
Sources & References
- IPC-A-600: Acceptability of Printed Boards
- IPC-6012: Qualification and Performance Specification for Rigid Printed Boards
- Photo Chemical Machining Institute — process capability guidelines
- NIST Engineering Statistics Handbook — process tolerance and capability
Standards are referenced for context. Always confirm parameters against the current published edition and your own process validation.
