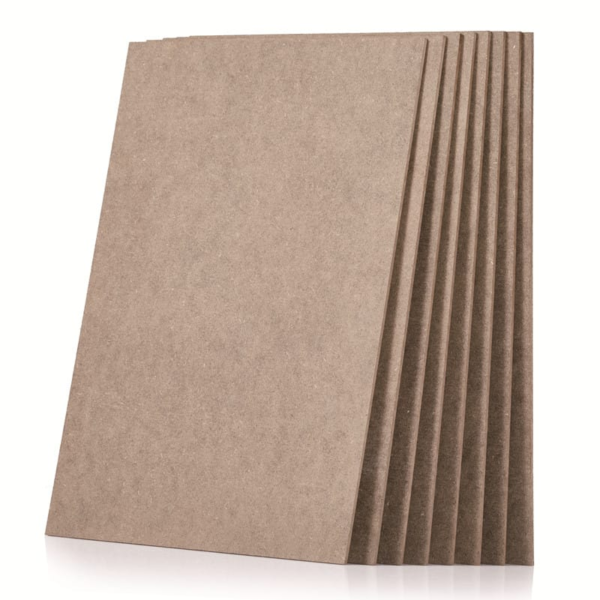

View detailsLooking for a reliable WOOD BACKUP BOARD? We stock this part for PCB drilling machines as part of our Backup & Entry Boards range. Every unit is checked before dispatch and shipped from Shenzhen, so downtime on your drilling or routing line stays short.
What the WOOD BACKUP BOARD Does
Backup boards and entry sheets sit under and on top of the panel stack. They prevent exit burrs, guide the drill tip on entry, cool the bit and improve hole position accuracy.
Product Details
Application :
Suitable for FPC,HDI and Multilayer PCB Drilling
Advantaage:
Use water -based environmental protection materials ,no pungent smell
Glossy surface,
Suitable for General PCB Drilling
Advantage:
● Surface is harder,smooth,can reduce the drilling burrs
● Economic selection can reduce the drilling cost
● Environment protect ,no pollution and Recyclable
Hardness
tolerance
41"*49"
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Exit burrs or entry damage on panels
- Poor hole position accuracy
- Excess drill wear or breakage
- Warped or contaminated boards in stock
How to Confirm Compatibility
Before ordering, please check or send us:
- Board / sheet thickness and size
- Material (wood, melamine, phenolic, aluminium, lubricated)
- Flatness and moisture specification
- Hole size range drilled
Looking for complete machines? See our Drilling & Via Formation.
Technical Questions
When should the WOOD BACKUP BOARD be replaced?
Typical signs are: exit burrs or entry damage on panels; poor hole position accuracy; excess drill wear or breakage; warped or contaminated boards in stock.
Which machines is the WOOD BACKUP BOARD compatible with?
It is designed for PCB drilling machines. Send us the machine model and the original part number and we will confirm the fit before shipment.
How fast can the WOOD BACKUP BOARD be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
Is the WOOD BACKUP BOARD new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
Sources & References
- IPC-A-600: Acceptability of Printed Boards
- IPC-6012: Qualification and Performance Specification for Rigid Printed Boards
- Photo Chemical Machining Institute — process capability guidelines
- NIST Engineering Statistics Handbook — process tolerance and capability
Standards are referenced for context. Always confirm parameters against the current published edition and your own process validation.
