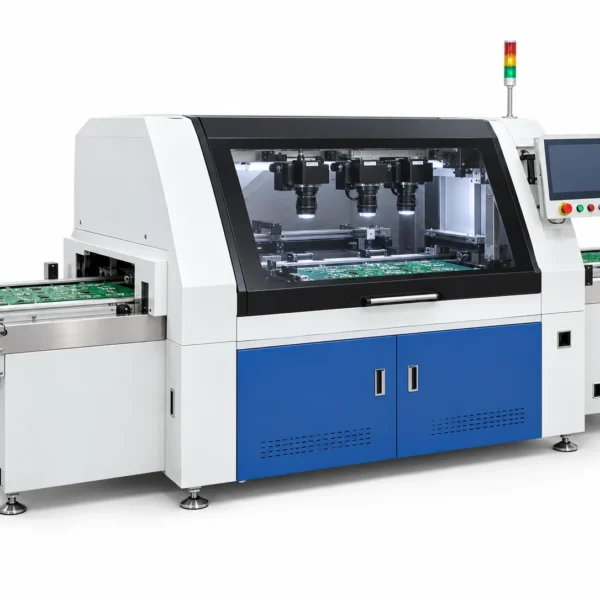

View detailsThe AVI Final Inspection Machine (WET-QC-03) is a production-grade inspection & quality system. Rather than a one-size-fits-all unit, it is built to a specification confirmed with your team — panel handling, control software, throughput, and material compatibility are all set to your mix.
Where the AVI Final Inspection Machine Fits in the Process
In a PCB line the AVI Final Inspection Machine sits in the inspection & quality area. Correct integration with the steps before and after it is what protects overall yield, cycle time, and cost per panel, so it is specified as part of the wider flow rather than in isolation.
Design Highlights
- Defect classification and reporting for SPC and traceability.
- Fast handling for inline inspection at production speed.
- Recipe management and process logging via the industrial pc + vision/software.
- Supplied as automatic (pc/cnc controlled), with options for line integration.
- Stainless-steel wetted parts and chemically resistant construction where the process requires it.
Where It Is Used
Used for inner-layer and final inspection and electrical test across high-reliability and high-volume production.
Build and Support
The AVI Final Inspection Machine is assembled and tested in-house. Electrical, air, water, and exhaust requirements are detailed in the installation drawing issued before delivery. After commissioning we provide process guidance and spares documentation to keep uptime high.
Request a Quotation
Tell us your panel size, throughput, and automation requirements for the AVI Final Inspection Machine. Our engineers will respond with a tailored configuration and price, usually within one business day.
Frequently Asked Questions
How is the AVI Final Inspection Machine controlled and operated?
Control is handled by Industrial PC + vision/software. Operators set recipes through the interface, and process values are logged for traceability and repeatability.
What is the maximum panel or workpiece size for the AVI Final Inspection Machine?
This configuration is rated for a maximum panel size of —. Larger or thinner stock can usually be accommodated with tooling changes — confirm the exact window for your job before ordering.
What lead time and support come with the AVI Final Inspection Machine?
Lead time is quoted per order once the configuration is fixed. Installation guidance, commissioning support, and spare-parts documentation are provided so the line reaches stable output quickly.
Which materials or board types does the AVI Final Inspection Machine support?
Supported board types include Rigid, multilayer, HDI (flex / rigid-flex optional). Other substrates can often be qualified with a short process trial — send a sample and we will confirm.
