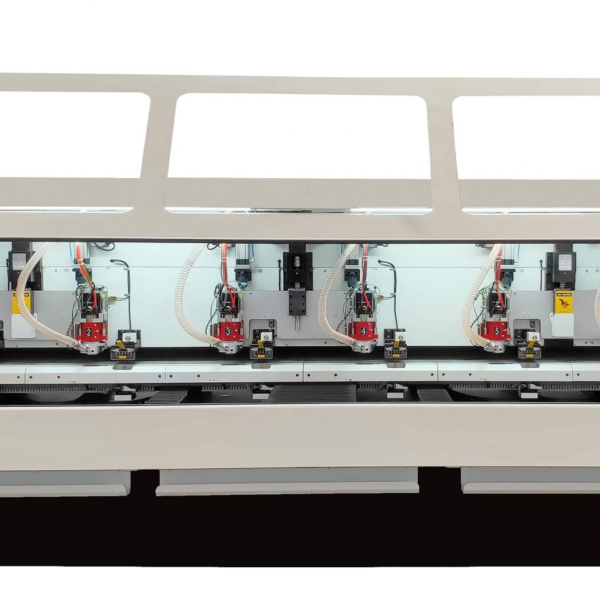

CNC 6 Spindles PCB Routing Machine R16KL

CNC 6 Spindles PCB Routing Machine R16KL

CNC 6 Spindles PCB Routing Machine R16KL

6-spindles pcb routing machine are the hot sale machines and its spares are imported from the famous brands such as the HIWIN ball screws, Delta Servo Motor and Driver, NSK bearings, SMC cylinders, Panasonnic Amplifier e

Profiling & Routing
Get a Quote

Description

6-spindles pcb routing machine are the hot sale machines and its spares are imported from the famous brands such as the HIWIN ball screws, Delta Servo Motor and Driver, NSK bearings, SMC cylinders, Panasonnic Amplifier etc.

Technical Features

Natural-granite base

CBD Electrical Connected Broken-tool Detection

Real-time response, no missing-routing

Frequently Asked Questions

What are the utility requirements for the CNC 6 Spindles PCB Routing Machine R16KL?
Electrical supply is specified at 3P/380V/50Hz (±5%); 3KW. Compressed air, water, and exhaust connections are detailed in the installation drawing supplied before delivery.
How is throughput determined for the CNC 6 Spindles PCB Routing Machine R16KL?
Throughput depends on material thickness, feature density, and the inspection target. We size the machine against your real production mix rather than a single nominal number.
What is the maximum panel or workpiece size for the CNC 6 Spindles PCB Routing Machine R16KL?
This configuration is rated for a maximum panel size of 4700mm×2130mm×1600mm (L×W×H). Larger or thinner stock can usually be accommodated with tooling changes — confirm the exact window for your job before ordering.
Can the CNC 6 Spindles PCB Routing Machine R16KL be customised for our process?
Yes. Conveyor width, tooling, control options, and the surrounding handling can be adapted to your panel size, throughput target, and facility constraints. Share your specification and we will propose a configuration.

Sources & References

Standards are referenced for context. Always confirm parameters against the current published edition and your own process validation.

D
Reviewed by
Chief Engineer, Wet Etching · WET Etched
Ph.D., Metallurgical & Chemical Engineering, Xiamen University

Technical Parameters

No. of Z axis3
No. of Spindle6
Processing area of each axis650mm×830mm
XYZ axial movement stroke670mm×925mm×55mm
Number of tools per axis66 pcs
Routing diameterφ0.6-φ3.175mm :
Tool changeHitachi Or Euro method
OptionalAutomatic collet cleaning function
ModelPCB CNC Router_R16KL
Spindle Speed60k rpm / min (80k rpm)
Drilling diameterφ0.5-φ6.35mm
Milling diameterφ0.6-φ3.175mm
XY Axial max. movement speed35m/min
Ｚ Axial max. movement speed25m/min
System resolution ratio0.001mm
Positioning Accuracy±0.01mm
Repeatability Accuracy±0.005mm
Routing precision±0.05mm
Power requirements3P/380V/50Hz (±5%); 3KW
Compressed air requirement300L/min
Cooling water requirement18℃-25℃
Environmental temperature20℃-25℃
Ambient humidity50%-75%
Noise≤75dBA
Machine Size4700mm×2130mm×1600mm (L×W×H)
Accessories nameSpecifications / Quantity / Brand
X axis- ball screw32×20-1260 / 1 / HIWIN(Taiwan, China)
Y axis- ball screw32×20-1260 / 1 / HIWIN(Taiwan, China)
Z axis- ball screw25×10-320 / 3 / HIWIN(Taiwan, China)
X axis-guide rail and slide block35×3960 / 2 / HIWIN(Taiwan, China)
Y axis-guide rail and slide block35×1480 / 2 / HIWIN(Taiwan, China)
Z axis-guide rail and slide block20×280 / 20×160 / 6/6 / HIWIN(Taiwan, China)
X/Y/Z axis-Servo Motor and Driver3KW; 3KW; 750KW / 1/1/3 / Delta(Taiwan, China)
X/Y/Z axis- BearingBS2047TN1/P4GB; 1205; 2047 / 4/2/6 / NSK(Japan)
SpindleKL-60C—2E / 6 / KLKJ（China）
