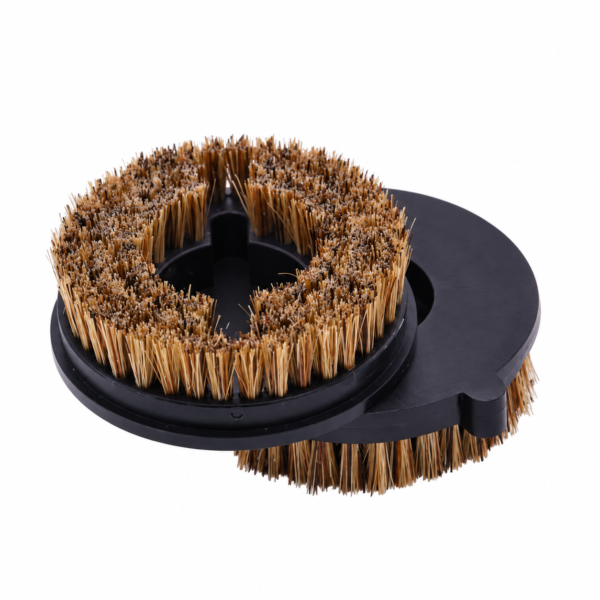

The PCB Pressure Foot Brush AEMG Registration Pin Type fits AEMG PCB drilling and routing machines. As a specialist supplier of PCB machine spares, we keep it in our Pressure Feet & Brushes stock and ship it worldwide by express, with technical support to confirm compatibility before you order.
What the PCB Pressure Foot Brush AEMG Registration Pin Type Does
Pressure feet, bushes and brushes hold the panel flat around the tool and extract chips and dust. A worn foot or brush causes burrs, entry-side damage and poor dust extraction.
Product Details
All kindly of pcb pressure foot brush could be provided such as the Hiatchi, Schmoll, AEMG, Pluritec etc.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Burrs or lifted copper on the entry side
- Dust left on the panel after drilling
- Bristles worn, uneven or melted
- Cracked or deformed foot body
How to Confirm Compatibility
Before ordering, please check or send us:
- Machine brand and spindle model
- Outer diameter and bush hole size
- Brush length and bristle type
- Vacuum fitting compatibility
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
When should the PCB Pressure Foot Brush AEMG Registration Pin Type be replaced?
Typical signs are: burrs or lifted copper on the entry side; dust left on the panel after drilling; bristles worn, uneven or melted; cracked or deformed foot body.
What information do you need to quote the PCB Pressure Foot Brush AEMG Registration Pin Type?
Please provide: machine brand and spindle model, outer diameter and bush hole size, brush length and bristle type, vacuum fitting compatibility. Photos of the installed part also help.
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
Which machines is the PCB Pressure Foot Brush AEMG Registration Pin Type compatible with?
It is designed for AEMG PCB drilling and routing machines. Send us the machine model and the original part number (this item: WETMS-005 PCB Pressure Foot Brush) and we will confirm the fit before shipment.
Sources & References
- IPC-A-600: Acceptability of Printed Boards
- IPC-6012: Qualification and Performance Specification for Rigid Printed Boards
- Photo Chemical Machining Institute — process capability guidelines
- NIST Engineering Statistics Handbook — process tolerance and capability
Standards are referenced for context. Always confirm parameters against the current published edition and your own process validation.
