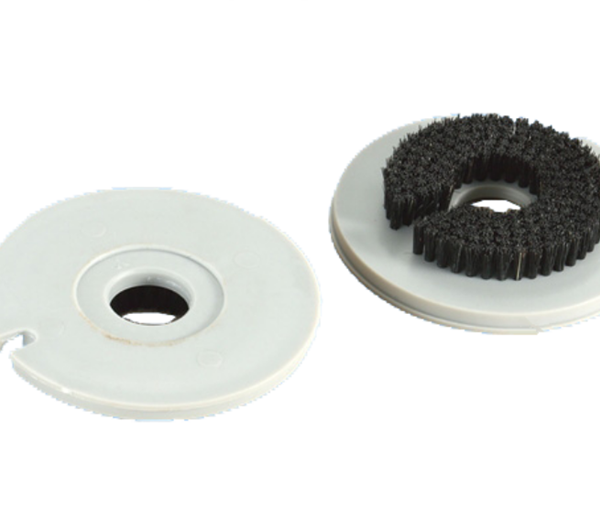

View detailsLooking for a reliable Pressure Foot Brush Hitachi OD 75mm? We stock this part for Hitachi PCB drilling and routing machines as part of our Pressure Feet & Brushes range. Every unit is checked before dispatch and shipped from Shenzhen, so downtime on your drilling or routing line stays short.
What the Pressure Foot Brush Hitachi OD 75mm Does
Pressure feet, bushes and brushes hold the panel flat around the tool and extract chips and dust. A worn foot or brush causes burrs, entry-side damage and poor dust extraction.
Product Details
Model
WETMS-003
Size
Φ39*Φ19
Application
Taliang Routing Machine
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
When to Replace It
- Burrs or lifted copper on the entry side
- Dust left on the panel after drilling
- Bristles worn, uneven or melted
- Cracked or deformed foot body
How to Confirm Compatibility
Before ordering, please check or send us:
- Machine brand and spindle model
- Outer diameter and bush hole size
- Brush length and bristle type
- Vacuum fitting compatibility
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
How fast can the Pressure Foot Brush Hitachi OD 75mm be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
What information do you need to quote the Pressure Foot Brush Hitachi OD 75mm?
Please provide: machine brand and spindle model, outer diameter and bush hole size, brush length and bristle type, vacuum fitting compatibility. Photos of the installed part also help.
When should the Pressure Foot Brush Hitachi OD 75mm be replaced?
Typical signs are: burrs or lifted copper on the entry side; dust left on the panel after drilling; bristles worn, uneven or melted; cracked or deformed foot body.
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
